Version	Fixed
Brand	ABB
EAN	8015644013288
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	100
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	1000
L - Overload Current Setting I1 (A)	70 - 100
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	3
Power Loss (W)	7
Rated Current (A)	100
Rated Frequency (Hz)	50/60
Rated Instantaneous Short-Circuit Current - Ii (A)	1000
Rated Insulation Voltage (V)	800
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Dimensions (mm)	76.2W x 130H x 70D
Trip Unit	TMD
Degree of Protection	IP20
Standards and Approvals	IEC 60947-2
MCCB Type	XT1 Frame
Poles	3P
Breaking Capacity (kA)	50
Tripping Unit	TMD
Voltage (V)	690 AC
Trip Unit - Thermal Magnetic	TMD

Moulded Case Circuit Breakers

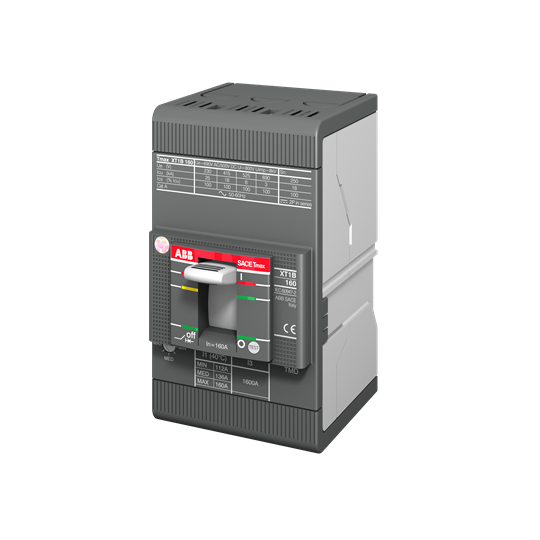

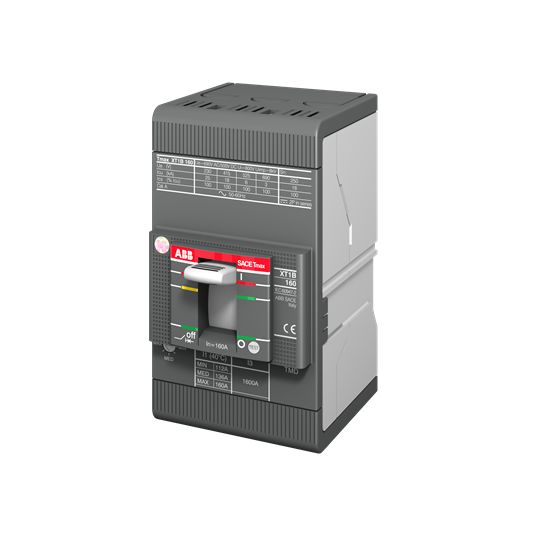

ABB XT1S 160 TMD 100-1000 3P F F 1SDA067434R1
