Specifications

Dimensions (mm)	90W x 130H x 82.5D
No. of Poles	3
Power Loss (W)	0.1
Rated Current (A)	10
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	10
Rated Uninterrupted Current - Iu (A)	160
Breaking Capacity 415V AC - Icu (kA)	70
Rated Voltage (V)	690
Design of Control Element	Toggle
EAN	8015644017682
MCCB Type	XT2 Frame
Poles	3P
Breaking Capacity (kA)	70
Current Rating (A)	10
Tripping Unit	EKIP DIP LSIG
Voltage (V)	690 AC
Trip Unit - Electronic	EKIP DIP LSIG
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	15 kA
Connection Type	Front
Degree of Protection	IP20
Number of Poles	3
Power Loss	0.1 W
Rated Current	10 A
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC
Release Type	EL
Standards and Approvals	IEC60947-2
Suitable For Use With	XT2H
Terminal Type	Bolt
Trip Unit	Ekip Dip LSI
Version	Fixed
Weight	1.2 kg
Width	90 mm

Description

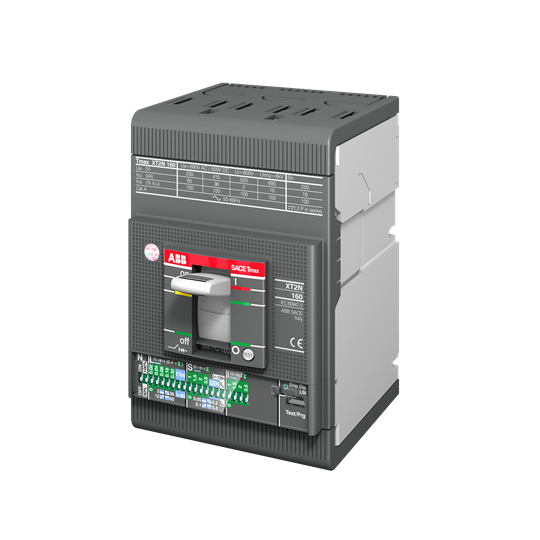

C.BREAKER TMAX XT2H 160 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LSIG R 10 A
