Version	Fixed
Brand	ABB
EAN	8015644018047
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	10
Design of Control Element	Toggle
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	4
Power Loss (W)	0.1
Rated Current (A)	10
Rated Frequency (Hz)	50/60
Rated Instantaneous Short-Circuit Current - Ii (A)	10
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Dimensions (mm)	120W x 130H x 82.5D
Trip Unit	EKIP DIP LSIG
Degree of Protection	IP20
Standards and Approvals	IEC 60947-2
MCCB Type	XT2 Frame
Poles	4P
Breaking Capacity (kA)	70
Tripping Unit	EKIP DIP LSIG
Voltage (V)	690 AC
Trip Unit - Electronic	EKIP DIP LSIG

Moulded Case Circuit Breakers

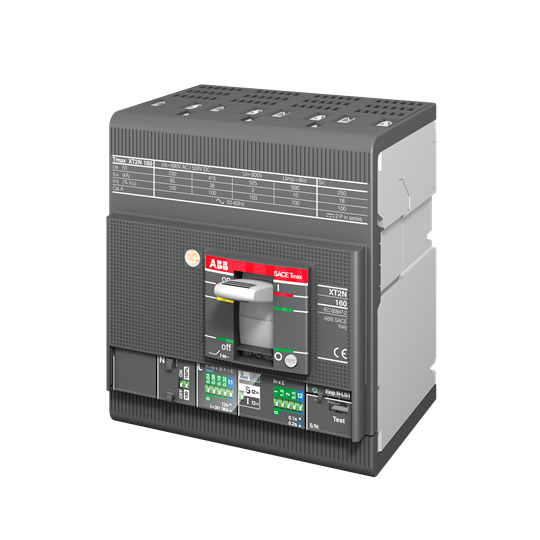

ABB XT2H 160 EKIP LSIG IN=10A 4P F F 1SDA067908R1
