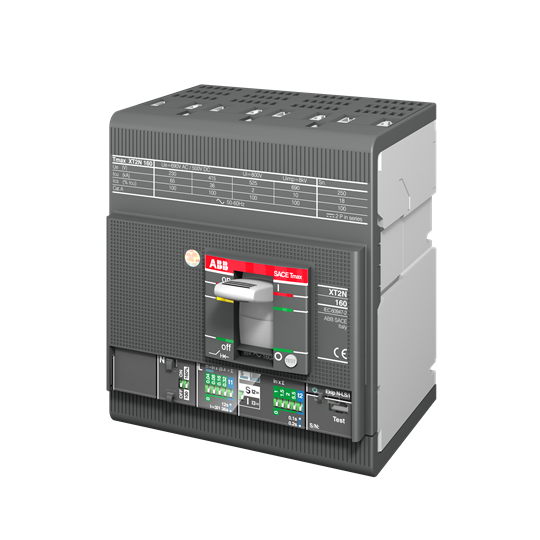

When selecting a Molded Case Circuit Breaker (MCCB) for your industrial or commercial applications, it's crucial to consider the technical specifications and how they align with your operational needs. This MCCB is designed to offer reliable and efficient circuit protection with its robust features.
Rated at 160 A, this MCCB provides ample current handling capacity suitable for a wide range of electrical systems. It supports a rated voltage of up to 690 VAC, making it versatile across different power distribution networks. The device's ability to withstand impulse voltages up to 8 kV ensures resilience against transient overvoltages, enhancing system reliability.
The rated insulation voltage stands at 1000 V, offering an additional layer of safety in high-voltage environments. With its EL release type and Ekip Dip LSI trip unit, this breaker delivers precise electronic protection and control over load conditions, ensuring optimal performance under varying electrical loads.
A significant feature of this MCCB is its breaking capacity of 15 kA, which allows it to safely interrupt fault currents without damage or risk to the system. The bolt terminal connection type facilitates secure and straightforward installation while maintaining strong electrical contact.
Measuring 120 mm in width and weighing just 1.6 kg, this compact MCCB fits well into space-constrained panels without compromising on performance. It adheres strictly to IEC60947-2 standards and approvals, guaranteeing compliance with international safety regulations.
The front connection type simplifies integration into existing setups by allowing easy access during maintenance or inspection tasks. Its IP20 degree of protection indicates that the device is safeguarded against solid objects larger than 12 mm but should be housed appropriately for environmental exposure considerations.
Operating efficiently at both standard frequencies of 50/60 Hz ensures compatibility across different regions' power systems. Additionally, the power loss rating of only 10.8 W contributes to energy efficiency within your electrical infrastructure.
This MCCB is compatible with XT2H systems, providing flexibility in integrating with other components within your setup seamlessly. Overall, whether you're upgrading existing installations or setting up new ones, these technical attributes make this MCCB a dependable choice for safeguarding your electrical circuits effectively.
