Product Code: XT2N3T100MC1

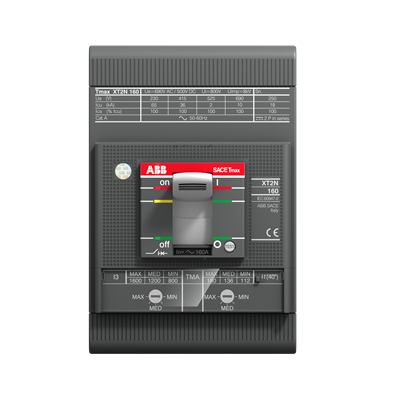

The ABB MCCB XT2N is a 100A frame, 3P (three-pole) circuit breaker with a fixed rating of 36kA. It has an In (rated current) of 100A and I1 (adjustable thermal overload protection range) of 40-100A. The S-I2 (short-circuit breaking capacity) ranges from 60-1000A, while the I-I3 (instantaneous short-circuit protection range) is between 150-1000A. This MCCB features a touch LSI trip unit and belongs to class 1 metering. It is equipped with front terminals for easy installation.

Brand	ABB
I (1.5 to 10 x In) - I3 (A)	150-1000
MCCB Type	Embedded Metering Class 1
Tripping Unit	Ekip DIP LSI
Current Rating (A)	100
L (0.4 to 1 x In) - I1 (A)	40-100
No. of Poles	3
Poles	3P
Rated Current (A)	100
S (0.6 to 10 x In) - I2 (A)	60-1000
Size of Frame	XT2
Trip Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI

Moulded Case Circuit Breakers

ABB XT2N3T100MC1 MCCB XT2N 3P FXD In=100A LSI MET. CLASS 1

Product Code: XT2N3T100MC1

Technical Specifications
