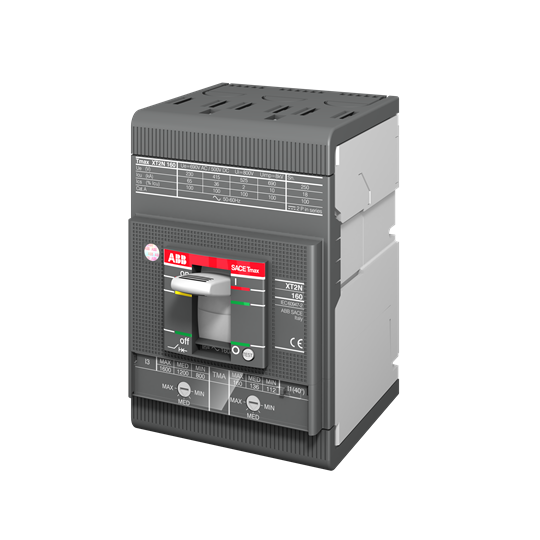

When it comes to ensuring the reliability and safety of your electrical systems, choosing the right components is crucial. The MCCB (Molded Case Circuit Breaker) at hand offers a robust solution for industrial and commercial applications where dependability is key.
With a rated current of 100 A, this MCCB provides ample capacity for various applications. It operates efficiently across both AC and DC systems with a rated voltage of 690 VAC or 500 VDC. Its impressive breaking capacity of 50 kA ensures that it can handle high fault currents, protecting your system from potential overloads or short circuits.
This device features a thermal-magnetic (TM) release type, utilizing a TMA trip unit to offer precise protection by responding effectively to both long-term overcurrent situations and short-circuit conditions. The current setting range between 70-100 A allows for customization based on specific circuit requirements, enhancing its versatility.
The MCCB is designed with three poles and supports front connection types via bolt terminals, making installation straightforward while maintaining secure connections. Its main circuit connecting capacity ranges from 32.5 to 100 sq-mm, accommodating varied wiring needs.
Conforming to IEC60947-2 standards, this product meets international safety regulations ensuring reliable performance in demanding environments. With an IP20 degree of protection, it’s suitable for installations where basic ingress protection against solid objects is required.
Despite its powerful capabilities, the MCCB maintains a compact form factor with a width of just 90 mm and weighs only 1.4 kg—ideal for space-constrained setups without compromising functionality.
Power loss is minimized at just 8.08 W which contributes to energy efficiency within your system operations—a significant consideration in today's energy-conscious world.
Engineered to operate smoothly across frequencies ranging from 50/60 Hz and boasting an impressive rated impulse withstand voltage of up to 8 kV along with rated insulation voltage at 1000 V—it stands as a testament to durability under varied electrical stresses.
Moreover, this MCCB is compatible with XT2S units adding flexibility when integrating into existing setups or planning new installations altogether—making it an excellent choice for professionals seeking reliable circuit protection solutions tailored towards medium-scale industrial or commercial projects alike.
