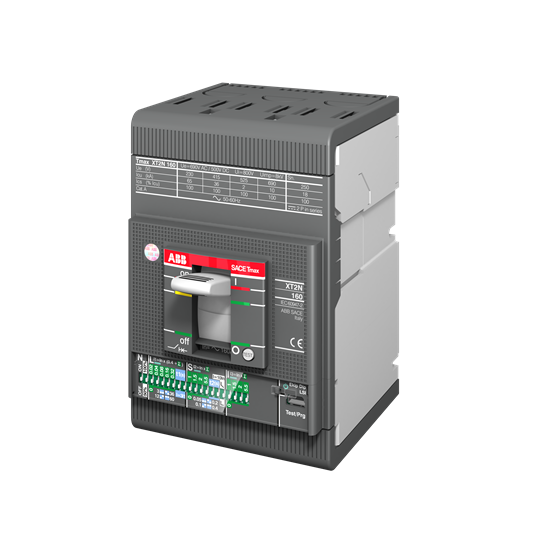

In the realm of industrial and commercial electrical distribution, the choice of a reliable Molded Case Circuit Breaker (MCCB) is crucial. The MCCB in question is designed to meet the demands of those who require robust protection and operational efficiency. This device stands out with its 10 A rated current, making it suitable for various applications that demand precision and reliability.
One of its key features is the rated impulse withstand voltage of 8 kV, ensuring resilience against transient overvoltages. Coupled with a rated insulation voltage of 1000 V and a rated voltage capacity of 690 VAC, this MCCB offers substantial protection under challenging conditions. It operates effectively across standard frequencies of 50/60 Hz, providing flexibility for diverse electrical systems.
The EL release type paired with an Ekip Dip LSI trip unit enhances its performance by offering advanced electronic protection functions tailored for specific needs. With a breaking capacity of 50 kA, it ensures safety by interrupting fault currents efficiently before they can cause damage or downtime.
Engineered with practicality in mind, this MCCB features a front connection type that facilitates straightforward installation and maintenance. Its bolt terminal type provides secure connections essential for stable operation within circuits ranging from 32.5 to 100 sq-mm main circuit connecting capacity.
Measuring at a width of just 90 mm and weighing in at only 1.4 kg, this compact yet powerful unit is easy to integrate into existing setups without compromising space or structural integrity. The degree of protection is IP20, which safeguards against solid objects larger than 12mm while maintaining accessibility for routine checks.
Compliance with IEC60947-2 standards underscores its quality assurance and compatibility within global markets—a testament to its robust design and manufacturing excellence. Additionally, it's specifically suitable for use with XT2S systems, indicating seamless integration into compatible infrastructures.
With minimal power loss recorded at just 0.1 W, this MCCB not only ensures energy efficiency but also contributes to reducing overall operational costs—an attractive feature for businesses aiming to optimize their energy consumption without sacrificing performance.
In conclusion, whether you're upgrading your current system or embarking on new installations requiring dependable circuit protection solutions, this MCCB presents itself as a worthy contender through its blend of technical prowess and user-friendly attributes.
