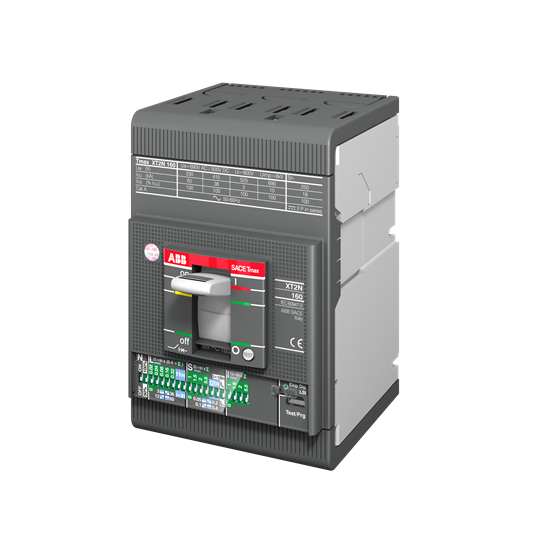

When selecting the right Molded Case Circuit Breaker (MCCB) for your commercial or industrial application, understanding the technical specifications is crucial. This MCCB offers a robust solution with its 10 A rated current, making it suitable for various electrical systems that demand reliable circuit protection.
The device operates efficiently at both AC and DC voltages, rated up to 690 VAC/VDC. It features an impressive rated impulse withstand voltage of 8 kV and a rated insulation voltage of 1000 V, ensuring safety and durability in high-voltage environments. Its breaking capacity stands at 12 kA, providing dependable performance under fault conditions.
Equipped with an Ekip Dip LSI trip unit, this MCCB offers precise protection through its electronic release type EL. The front connection type simplifies installation and maintenance processes, especially in panel boards where space can be limited. With a bolt terminal type and main circuit connecting capacity ranging from 32.5 to 100 sq-mm, it accommodates various conductor sizes seamlessly.
This MCCB boasts an IP20 degree of protection which is adequate for most indoor applications where minimal exposure to dust and water ingress is expected. Its power loss is minimal at just 0.1 W, contributing to energy efficiency within your system.
Designed with three poles and measuring a compact width of 90 mm while weighing in at only 1.2 kg, this device fits well into standard enclosures without adding unnecessary bulk or weight.
Moreover, the MCCB adheres to IEC60947-2 standards ensuring compliance with international quality benchmarks for low-voltage switchgear components. It's also compatible with XT2S systems which may expand its applicability across different setups.
Operating seamlessly at frequencies of either 50 Hz or 60 Hz adds versatility across regions with varying grid standards making it adaptable for global use cases.
In summary, this MCCB provides comprehensive circuit protection tailored for those seeking reliability coupled with efficient design parameters suitable for demanding environments without compromising on safety or performance metrics.
