Brand	ABB
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	625 - 1250
L - Overload Current Setting I1 (A)	87.5 - 125
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT2 Frame
Overload Release Current Setting (A)	87.5
Rated Instantaneous Short-Circuit Current - Ii (A)	625
Trip Unit - Thermal Magnetic	TMA
Tripping Unit	TMA
Voltage (V)	690 AC
Breaking Capacity (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	125
Degree of Protection	IP20
Dimensions (mm)	120W x 130H x 82.5D
EAN	8015644014780
No. of Poles	4
Poles	4P
Power Loss (W)	11.4
Rated Current (A)	125
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Standards and Approvals	IEC 60947-2
Trip Unit	TMA
Version	Fixed

Moulded Case Circuit Breakers

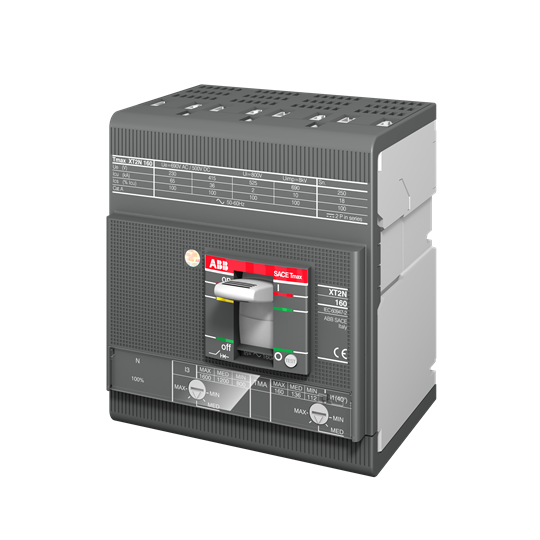

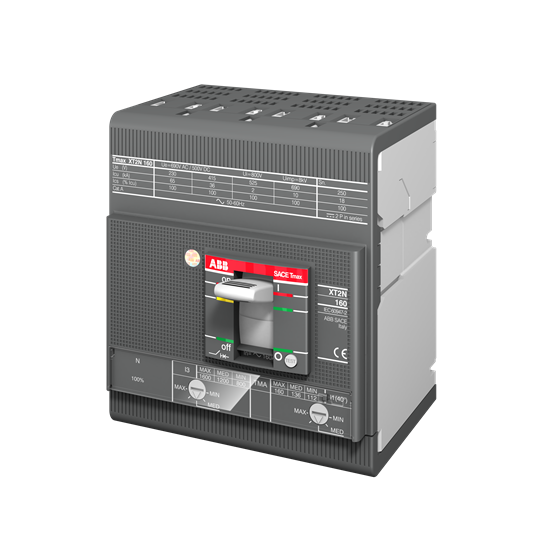

ABB XT2S 160 TMA 125-1250 4P F F INN=100% 1SDA067582R1
