Specifications

Dimensions (mm)	90W x 130H x 82.5D
No. of Poles	3
Power Loss (W)	1.7
Rated Current (A)	63
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	63
Rated Uninterrupted Current - Iu (A)	160
Breaking Capacity 415V AC - Icu (kA)	50
Rated Voltage (V)	690
I - Short-circuit Current Setting I3 (A)	63 - 630
L - Overload Current Setting I1 (A)	25.2 - 63
S - Selective Short-circuit Current Setting I2 (A)	63 - 630
Design of Control Element	Toggle
EAN	8015644017088
MCCB Type	XT2 Frame
Poles	3P
Breaking Capacity (kA)	50
Current Rating (A)	63
Tripping Unit	EKIP DIP LSI
Voltage (V)	690 AC
Trip Unit - Electronic	EKIP DIP LSI
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	12 kA
Connection Type	Front
Degree of Protection	IP20
Main Circuit Connecting Capacity	32.5-100 sq-mm
Number of Poles	3
Power Loss	1.7 W
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Voltage	690 VAC/VDC
Release Type	EL
Standards and Approvals	IEC60947-2
Suitable For Use With	XT2S
Terminal Type	Bolt
Trip Unit	Ekip Dip LSI
Version	Fixed
Weight	1.2 kg
Width	90 mm

Description

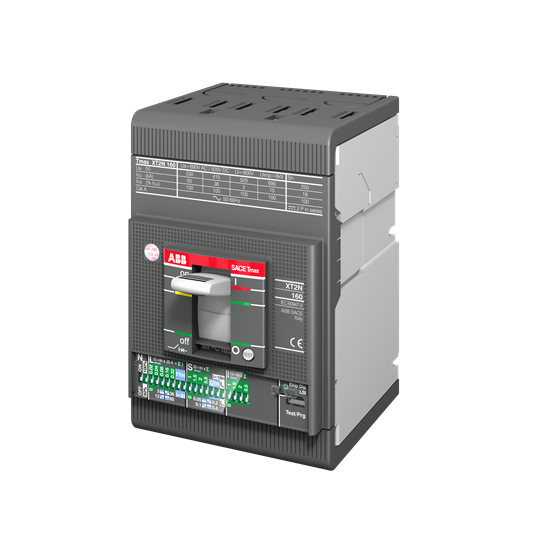

C.BREAKER TMAX XT2S 160 FIXED THREE-POLE WITH FRONT TERMINALS AND SOLID-STATE RELEASE IN AC EKIP-LSI R 63 A
