Specifications

Dimensions (mm)	140W x 150H x 70D
No. of Poles	4
Power Loss (W)	4.3
Rated Current (A)	63
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	800
Rated Instantaneous Short-Circuit Current - Ii (A)	630
Rated Uninterrupted Current - Iu (A)	250
Breaking Capacity 415V AC - Icu (kA)	50
Rated Voltage (V)	690
I - Short-circuit Current Setting I3 (A)	630
L - Overload Current Setting I1 (A)	44.1 - 63
Design of Control Element	Toggle
EAN	8015644021283
MCCB Type	XT3 Frame
Poles	4P
Breaking Capacity (kA)	50
Current Rating (A)	63
Tripping Unit	TMD
Voltage (V)	690 AC
Trip Unit - Thermal Magnetic	TMD
Overload Release Current Setting (A)	44.1
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	50 kA
Connection Type	Front
Current Setting Range	44.1-63 A
Degree of Protection	IP20
Main Circuit Connecting Capacity	85-192 sq-mm
Number of Poles	4
Power Loss	4.3 W
Rated Current	63 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	800 V
Rated Short Circuit Current	630 A
Rated Voltage	690/500 VAC/VDC
Release Type	TM
Standards and Approvals	IEC60947-2
Suitable For Use With	XT3S
Terminal Type	Bolt
Trip Unit	TMD
Version	Fixed
Weight	2.1 kg
Width	140 mm

Description

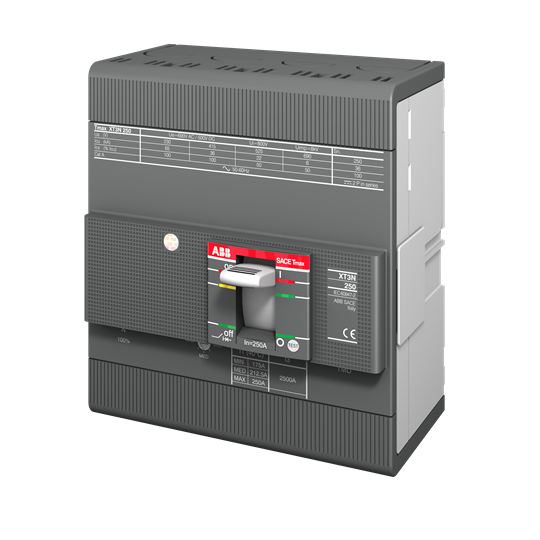

C.BREAKER TMAX XT3S 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMD R 63-630 A
