Brand	ABB
Design of Control Element	Toggle
G - Earth Fault Current Setting I4 (A)	20 - 100
I - Short-circuit Current Setting I3 (A)	100 - 1000
L - Overload Current Setting I1 (A)	40 - 100
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT4 Frame
Overload Release Current Setting (A)	40
Rated Instantaneous Short-Circuit Current - Ii (A)	100
S - Selective Short-circuit Current Setting I2 (A)	100 - 1000
Tripping Unit	EKIP DIP LSIG
Voltage (V)	690 AC
Breaking Capacity (kA)	70
Breaking Capacity 415V AC - Icu (kA)	70
Current Rating (A)	100
Degree of Protection	IP20
Dimensions (mm)	140W x 160H x 82.5D
EAN	8015644024543
No. of Poles	4
Poles	4P
Power Loss (W)	4.2
Rated Current (A)	100
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Standards and Approvals	IEC 60947-2
Trip Unit	EKIP DIP LSIG
Trip Unit - Electronic	EKIP DIP LSIG
Version	Fixed

Moulded Case Circuit Breakers

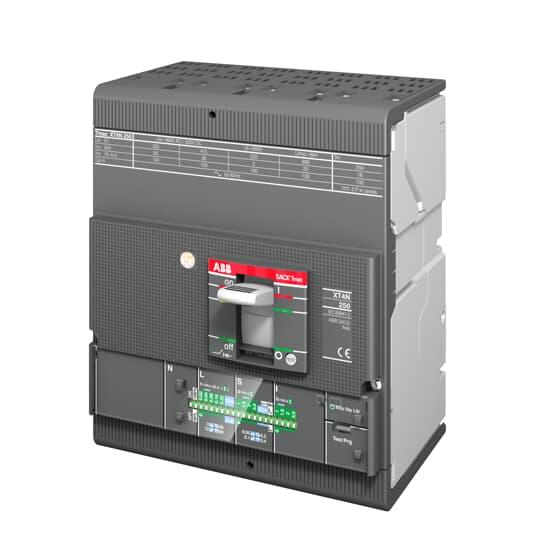

ABB XT4H 160 EKIP LSIG IN=100A 4P F F 1SDA068548R1
