Specifications

Dimensions (mm)	105W x 160H x 82.5D
No. of Poles	3
Power Loss (W)	16.4
Rated Current (A)	225
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	1125
Rated Uninterrupted Current - Iu (A)	250
Breaking Capacity 415V AC - Icu (kA)	70
Rated Voltage (V)	690
I - Short-circuit Current Setting I3 (A)	1125 - 2250
L - Overload Current Setting I1 (A)	157.5 - 225
Design of Control Element	Toggle
EAN	8015644022501
MCCB Type	XT4 Frame
Poles	3P
Breaking Capacity (kA)	70
Current Rating (A)	225
Tripping Unit	TMA
Voltage (V)	690 AC
Trip Unit - Thermal Magnetic	TMA
Overload Release Current Setting (A)	157.5
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	70 kA
Connection Type	Front
Current Setting Range	157.5-225 A
Degree of Protection	IP20
Main Circuit Connecting Capacity	85-200 sq-mm
Number of Poles	3
Power Loss	16.4 W
Rated Current	225 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Short Circuit Current	1125-2250 A
Rated Voltage	690/750 VAC/VDC
Release Type	TM
Standards and Approvals	IEC60947-2
Suitable For Use With	XT4H
Terminal Type	Bolt
Trip Unit	TMA
Version	Fixed
Weight	2.5 kg
Width	105 mm

Description

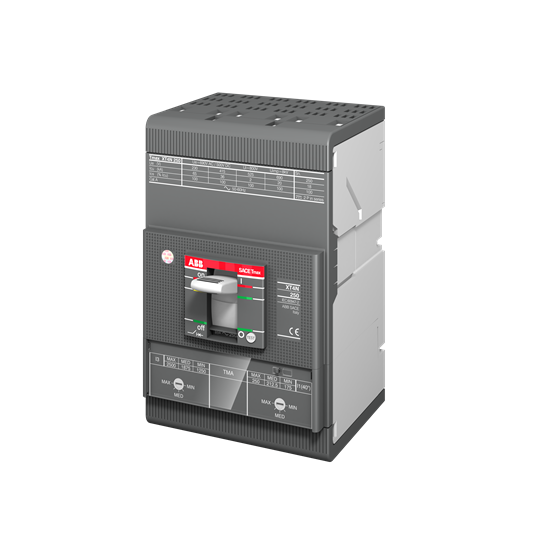

C.BREAKER TMAX XT4H 250 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 225 I3=1125...2250 A
