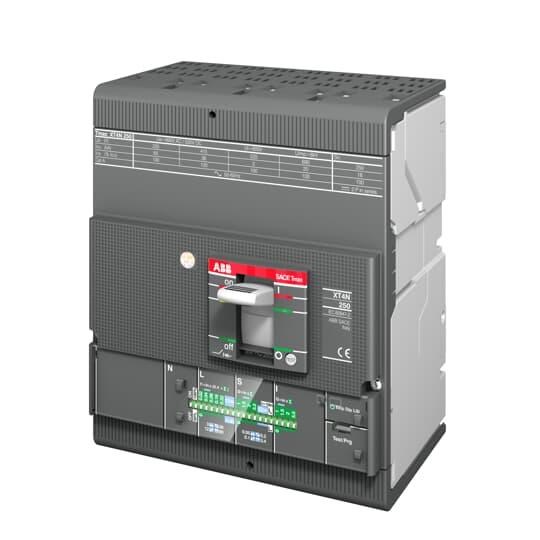

When considering the technical specifications for a reliable Molded Case Circuit Breaker (MCCB), this product stands out as a solid choice for industrial and commercial applications. Designed to manage electrical distribution with precision, it is engineered to handle demanding environments while ensuring safety and efficiency.
This MCCB is rated for a current of 250 A, making it suitable for medium-scale power distribution tasks. It operates efficiently at both 50 and 60 Hz frequencies, providing flexibility in various setups. Its rated voltage of 690 VAC ensures compatibility with high-voltage systems, while the rated insulation voltage of 1000 V offers an additional layer of protection against electrical faults.
For those concerned about impulse withstand capabilities, this MCCB boasts an impressive rated impulse withstand voltage of 8 kV. This feature enhances its ability to cope with transient overvoltages, thereby safeguarding connected equipment from potential damage.
The Ekip Dip LSI trip unit embedded in this breaker provides advanced protection features tailored to your specific requirements. With a breaking capacity of 15 kA, it is well-suited to interrupt fault currents effectively without compromising system integrity.
Installation and integration are straightforward due to its front connection type and bolt terminal design. The main circuit connecting capacity ranges from 85-200 sq-mm, accommodating various conductor sizes seamlessly. Furthermore, the breaker’s width measures at a compact 140 mm, allowing easy incorporation into existing panels or switchboards without excessive space demands.
In terms of durability and compliance, this MCCB adheres strictly to IEC60947-2 standards—an assurance of quality recognized globally. The degree of protection is marked at IP20, offering basic protection against solid objects larger than 12 mm in diameter.
Weighing in at just 3.5 kg, this device strikes a balance between robust construction and manageable weight—a crucial factor during installation or maintenance activities. Additionally, its power loss is limited to only 16.4 W under full load conditions.
This MCCB is particularly suitable for use with XT4H systems—a testament to its versatility across different configurations within your electrical network setup.
In conclusion, if you require an MCCB that combines reliability with advanced protective features while adhering to international standards, look no further than this model equipped with EL release type technology for optimal performance in varied operational contexts.
