Product Code: XT4N3T250MC1

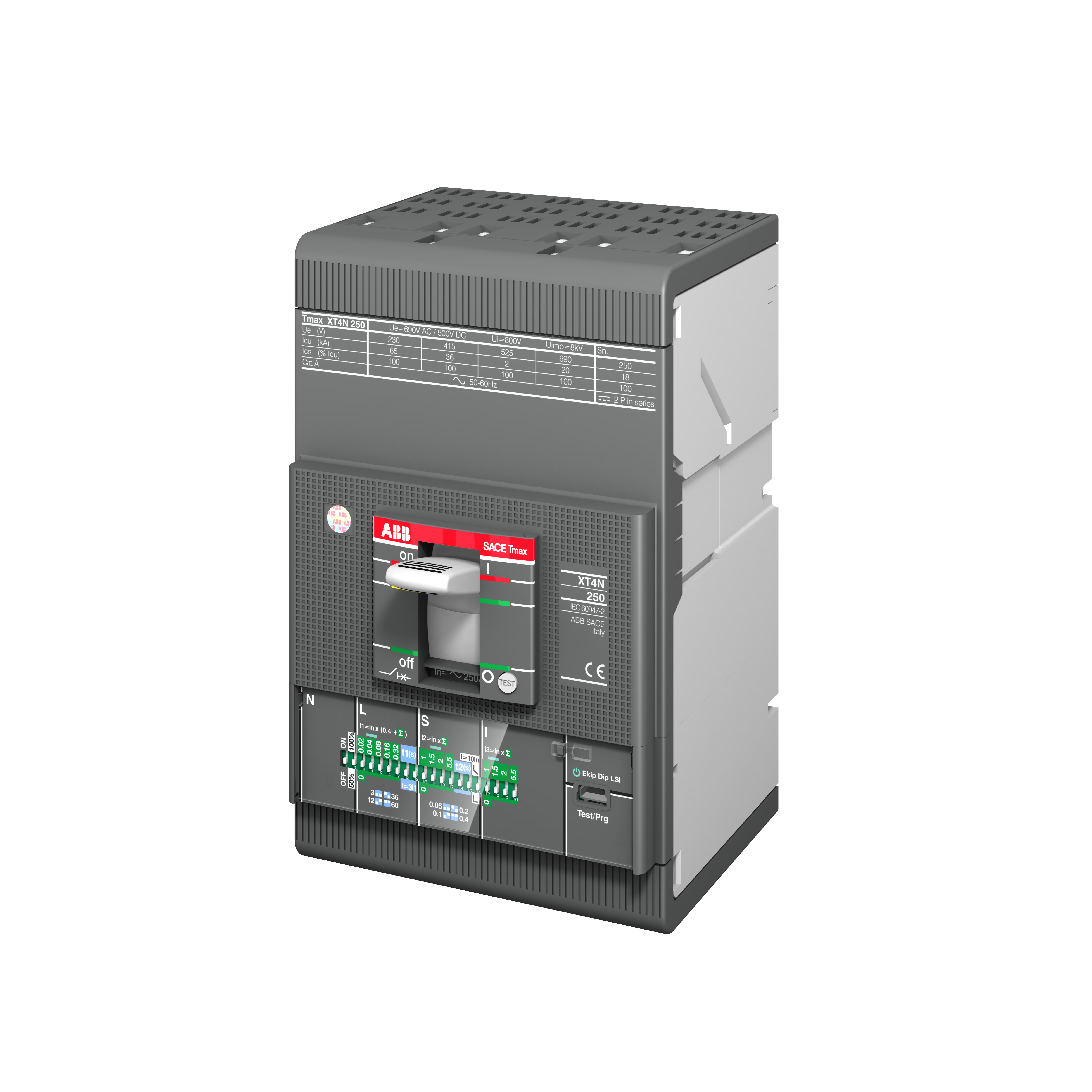

The ABB MCCB XT4N is a 250A frame, 3P (three-pole) circuit breaker with a fixed rating of 36kA. It has an In (rated current) of 100A and I1 (adjustable overload range) of 100-250A. The S-I2 (short-time withstand current) ranges from 150-2500A, while the I-I3 (instantaneous trip range) is between 375-2500A. This MCCB features a touch LSI (Long-Time, Short-Time, Instantaneous) trip unit with class 1 metering capabilities. It is equipped with front terminals for easy installation and is manufactured by ABB.

Brand	ABB
Current Rating (A)	250
I (1.5 to 10 x In) - I3 (A)	375-2500
L (0.4 to 1 x In) - I1 (A)	100-250
MCCB Type	Embedded Metering Class 1
No. of Poles	3
Poles	3P
Rated Current (A)	250
S (0.6 to 10 x In) - I2 (A)	150-2500
Size of Frame	XT4
Trip Unit	Ekip DIP LSI
Trip Unit - Electronic	Ekip DIP LSI
Tripping Unit	Ekip DIP LSI

Moulded Case Circuit Breakers

ABB XT4N3T250MC1 MCCB XT4N 3P FXD In=250A LSI MET. CLASS 1
