Version	Fixed
Brand	ABB
EAN	8015644019761
Breaking Capacity 415V AC - Icu (kA)	36
Current Rating (A)	40
Design of Control Element	Toggle
I - Short-circuit Current Setting I3 (A)	300 - 400
L - Overload Current Setting I1 (A)	28 - 40
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
No. of Poles	3
Overload Release Current Setting (A)	28
Power Loss (W)	4.49
Rated Current (A)	40
Rated Frequency (Hz)	50/60
Rated Instantaneous Short-Circuit Current - Ii (A)	300
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	160
Rated Voltage (V)	690
Dimensions (mm)	105W x 160H x 82.5D
Trip Unit	TMA
Degree of Protection	IP20
Standards and Approvals	IEC 60947-2
MCCB Type	XT4 Frame
Poles	3P
Breaking Capacity (kA)	36
Tripping Unit	TMA
Voltage (V)	690 AC
Trip Unit - Thermal Magnetic	TMA

Moulded Case Circuit Breakers

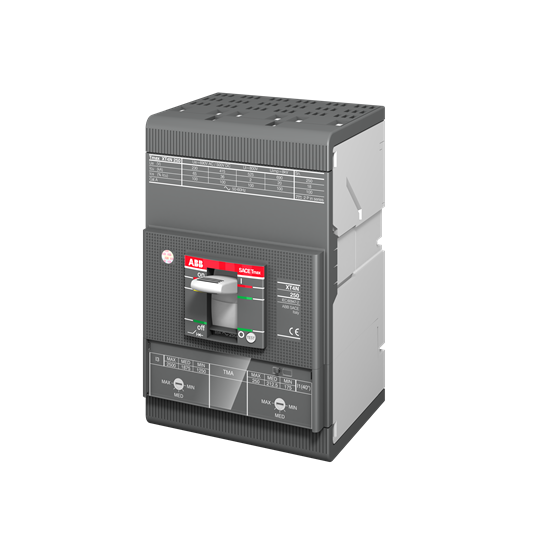

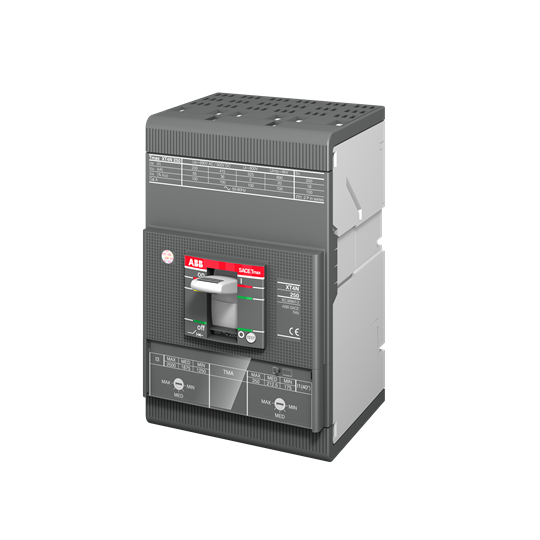

ABB XT4N 160 TMA 40-400 3P F F 1SDA068083R1
