Specifications

Dimensions (mm)	105W x 160H x 82.5D
No. of Poles	3
Power Loss (W)	6.24
Rated Current (A)	100
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	500
Rated Uninterrupted Current - Iu (A)	160
Breaking Capacity 415V AC - Icu (kA)	50
I - Short-circuit Current Setting I3 (A)	500 - 1000
L - Overload Current Setting I1 (A)	70 - 100
Design of Control Element	Toggle
EAN	8015644022136
MCCB Type	XT4 Frame
Poles	3P
Breaking Capacity (kA)	50
Current Rating (A)	100
Tripping Unit	TMA
Voltage (V)	690 AC
Trip Unit - Thermal Magnetic	TMA
Overload Release Current Setting (A)	70
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Rated Voltage (V)	690
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	50 kA
Connection Type	Front
Current Setting Range	70-100 A
Degree of Protection	IP20
Main Circuit Connecting Capacity	85-200 sq-mm
Number of Poles	3
Power Loss	6.24 W
Rated Current	100 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Short Circuit Current	500-1000 A
Rated Voltage	690/750 VAC/VDC
Release Type	TM
Standards and Approvals	IEC60947-2
Suitable For Use With	XT4S
Terminal Type	Bolt
Trip Unit	TMA
Version	Fixed
Weight	2.5 kg
Width	105 mm

Description

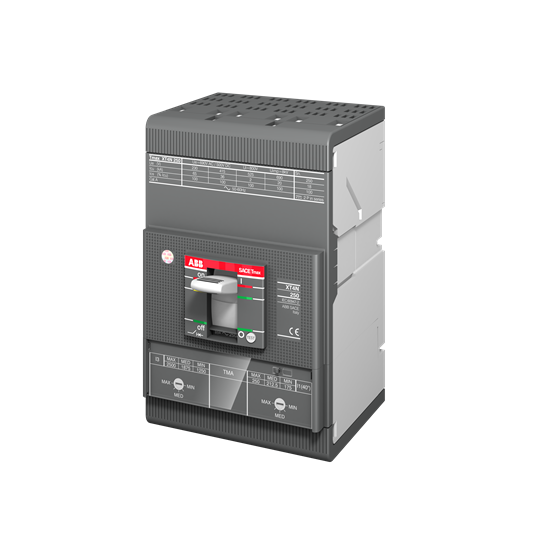

C.BREAKER TMAX XT4S 160 FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 100 I3=500...1000 A
