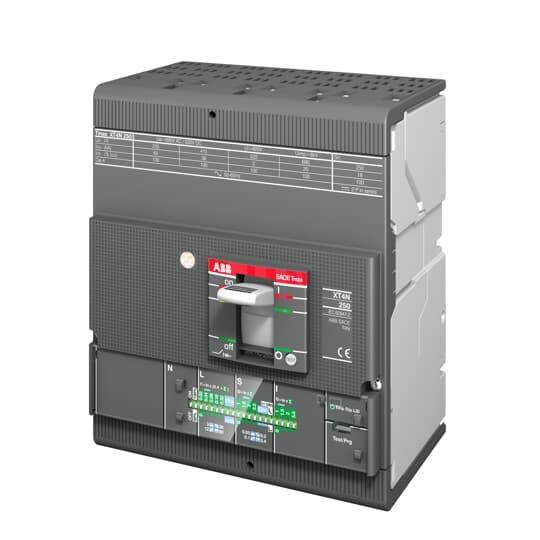

The MCCB (Molded Case Circuit Breaker) you're considering is a robust choice for industrial and commercial applications, characterized by its reliable performance and adherence to international standards. With a rated current of 100 A, this circuit breaker is designed to handle substantial electrical loads efficiently.
One of the standout features of this MCCB is its impressive rated impulse withstand voltage of 8 kV, ensuring it can safely manage high-voltage transients. The rated insulation voltage is 1000 V, providing an additional layer of safety against electrical faults. Operating at a rated voltage of up to 690 VAC, it caters well to heavy-duty applications.
The release type EL with the Ekip Dip LSI trip unit offers precise protection by monitoring current levels and responding promptly to overloads or short circuits. This helps in minimizing downtime and safeguarding connected equipment from potential damage. With a power loss of just 4.2 W, it ensures energy efficiency while maintaining high performance.
Designed with four poles, the MCCB supports balanced load distribution across phases in three-phase systems, enhancing operational stability. Its breaking capacity stands at an impressive 50 kA, making it suitable for environments where high fault currents are expected.
Installation flexibility is provided through front connection type and bolt terminal type design, allowing straightforward integration into existing systems or new setups. The device's width measures 140 mm, offering compactness without compromising on functionality.
With an IP20 degree of protection rating, this MCCB safeguards against solid objects larger than 12 mm while ensuring user safety during operation or maintenance tasks. Weighing in at 3.5 kg makes handling manageable during installation procedures.
Conforming to IEC60947-2 standards guarantees that this MCCB meets global benchmarks for quality and reliability in circuit protection devices—providing peace of mind regarding compliance and safety requirements.
This product operates effectively within a frequency range of 50/60 Hz and pairs seamlessly with XT4S devices for enhanced system compatibility and performance optimization across varied applications.
In summary, this MCCB offers a blend of durability, efficiency, and adaptability suited for demanding industrial settings where dependable power management solutions are essential.
