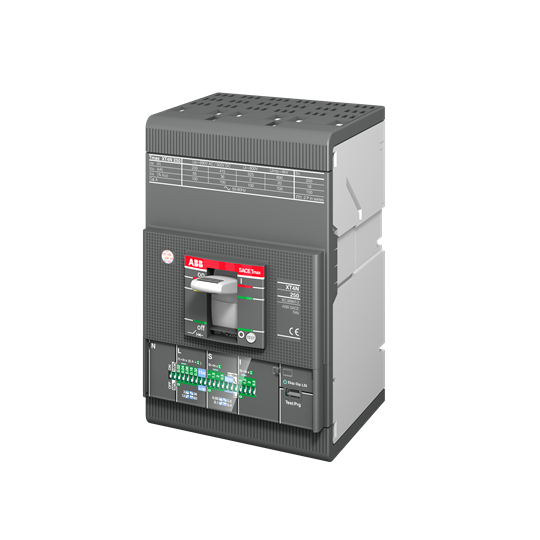

When considering a robust and reliable solution for circuit protection, this MCCB (Molded Case Circuit Breaker) stands out as a dependable choice for industrial and commercial applications. Designed to meet rigorous standards, it offers an impressive combination of performance and safety features.
With a rated current of 160 A, this MCCB is well-suited for various electrical systems requiring consistent power management. It can handle both AC and DC voltages up to 690 V, making it versatile across different setups. Its rated insulation voltage of 1000 V ensures that the device maintains integrity under demanding conditions.
Safety is paramount in any electrical installation, and this MCCB provides peace of mind with its rated impulse withstand voltage of 8 kV. This high rating indicates its ability to endure transient over-voltages without compromising functionality.
The trip unit equipped in this breaker is the Ekip Dip LSI type, providing precise protection tailored to specific needs. The release type EL further enhances its protective capabilities by ensuring quick response during fault conditions.
In terms of efficiency, the power loss is minimal at just 8.9 W, which helps maintain overall energy efficiency within your system. The breaking capacity of 50 kA adds another layer of reliability by ensuring that even large fault currents are swiftly interrupted.
Installation flexibility is assured with a front connection type and bolt terminals that facilitate secure connections. Measuring at a width of 105 mm and weighing in at 2.5 kg, it's compact enough for easy integration into existing panels without sacrificing space or stability.
This MCCB adheres to international standards with IEC60947-2 approval, underscoring its quality assurance and compatibility with global requirements. It offers IP20 degree protection against solid objects larger than 12 mm while allowing safe operation in controlled environments.
Designed for use with XT4S systems, it accommodates main circuit connecting capacities ranging from 85 to 200 square millimetres—providing ample versatility depending on your specific wiring needs.
Operating efficiently across frequencies between 50/60 Hz means you can deploy this breaker in diverse locales without concern for frequency mismatches affecting performance.
Overall, whether you're upgrading an existing setup or planning new installations, this MCCB delivers reliable circuit protection backed by comprehensive specifications suitable for demanding applications.
