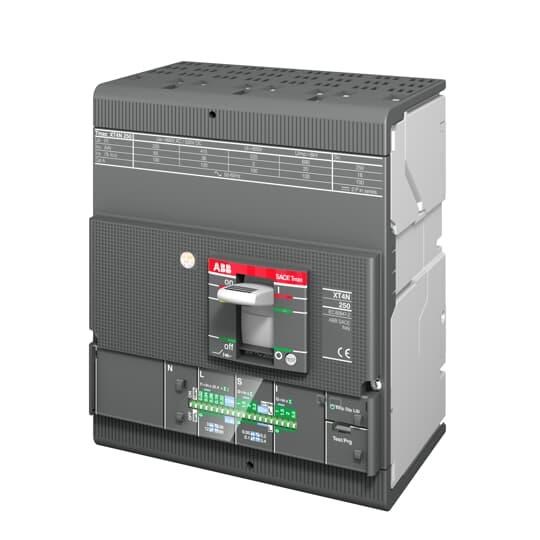

When you're in the market for a reliable and efficient Molded Case Circuit Breaker (MCCB), this model stands out with its robust specifications tailored for various industrial and commercial applications. Let's delve into the specifics to see how it can meet your technical requirements.
This MCCB is engineered to handle a rated current of 250 A, making it suitable for medium-sized electrical setups. With a rated voltage capacity of 690 VAC, it's designed to accommodate high-voltage systems efficiently. The device also features an impressive rated impulse withstand voltage of 8 kV, ensuring resilience against transient over-voltages.
Safety and reliability are paramount in any electrical system, and this MCCB doesn't disappoint. It boasts a breaking capacity of 50 kA, providing substantial protection by interrupting fault currents effectively before they cause damage. Additionally, the degree of protection is classified as IP20, offering basic protection against solid objects and some level of safety from accidental contact.
The trip unit incorporated in this breaker is the Ekip Dip LSI type EL release mechanism. This advanced technology allows precise control over short-circuit conditions, enhancing operational safety while minimizing downtime during maintenance or fault conditions.
From an installation perspective, the MCCB offers flexibility with its front connection type and bolt terminal configuration. This design facilitates straightforward integration into existing systems without extensive modifications. Its compact width of 140 mm ensures that space constraints are easily managed without compromising performance.
Compliance with international standards like IEC60947-2 underscores its credibility and assures users that it meets rigorous global safety benchmarks. Weighing in at just 3.5 kg, it strikes a balance between durability and ease of handling during installation or maintenance processes.
For those operating within varying power environments, the MCCB supports both 50 Hz and 60 Hz frequencies seamlessly. Furthermore, it's compatible with XT4S systems—offering additional versatility across different setups or expansions you might consider down the line.
Power efficiency is another highlight; with a power loss rating of only 16.4 W under standard operation conditions—this breaker optimizes energy usage while maintaining top-tier performance levels throughout its lifecycle.
In summary, this MCCB provides comprehensive solutions for managing electrical circuits safely across diverse applications thanks to its well-rounded features tailored for demanding environments typical in industrial settings—all wrapped up neatly within stringent compliance frameworks ensuring peace-of-mind operations day-in-day-out without unnecessary complications!
