Specifications

Dimensions (mm)	140W x 160H x 82.5D
No. of Poles	4
Power Loss (W)	16.44
Rated Current (A)	250
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Instantaneous Short-Circuit Current - Ii (A)	1250
Rated Uninterrupted Current - Iu (A)	250
Breaking Capacity 415V AC - Icu (kA)	50
I - Short-circuit Current Setting I3 (A)	1250 -2500
L - Overload Current Setting I1 (A)	175 - 250
Design of Control Element	Toggle
EAN	8015644696382
MCCB Type	XT4 Frame
Poles	4P
Breaking Capacity (kA)	50
Current Rating (A)	250
Tripping Unit	TMA
Voltage (V)	690 AC
Trip Unit - Thermal Magnetic	TMA
Overload Release Current Setting (A)	175
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
Rated Voltage (V)	690
Product Type	Moulded Case Circuit Breaker
Brand	ABB
Breaking Capacity	50 kA
Connection Type	Front
Current Setting Range	175-250 A
Degree of Protection	IP20
Main Circuit Connecting Capacity	85-200 sq-mm
Number of Poles	4
Power Loss	1.8 W
Rated Current	250 A
Rated Frequency	50/60 Hz
Rated Impulse Withstand Voltage	8 kV
Rated Insulation Voltage	1000 V
Rated Short Circuit Current	1250-2500 A
Rated Voltage	690/750 VAC/VDC
Release Type	TM
Standards and Approvals	IEC60947-2
Suitable For Use With	XT4S
Terminal Type	Bolt
Trip Unit	TMA
Version	Fixed
Weight	3.5 kg
Width	140 mm

Description

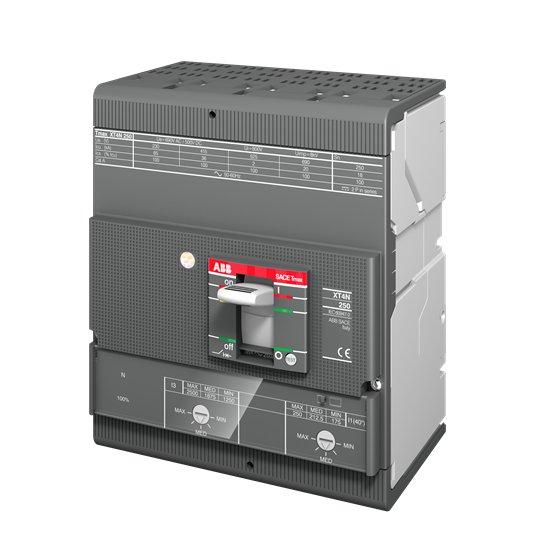

C.BREAKER TMAX XT4S 250 FIXED FOUR-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 250 I3=1250...2500 A FULLY RATED NEUTRAL
