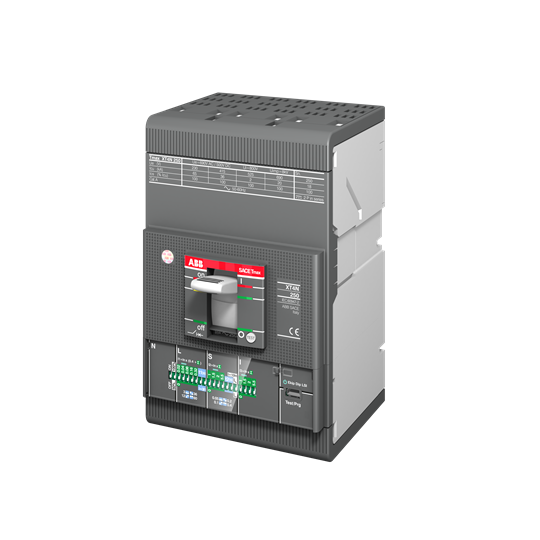

When it comes to selecting a reliable Molded Case Circuit Breaker (MCCB) for industrial and commercial applications, the product in question stands out with its robust specifications. Designed for efficiency and safety, this MCCB is crafted to meet rigorous standards while providing dependable performance.
Rated at 40 A, this MCCB is well-suited for managing moderate electrical loads. It boasts a rated voltage of 690 VAC, ensuring compatibility with high-voltage systems. The rated insulation voltage is an impressive 1000 V, offering superior protection against electrical shocks and faults.
One of the standout features of this MCCB is its rated impulse withstand voltage of 8 kV, which provides excellent resilience against transient overvoltages typically caused by lightning or switching operations. Its breaking capacity reaches up to 25 kA, making it capable of interrupting substantial fault currents without compromising system integrity.
The Ekip Dip LSI trip unit ensures precise protection through adjustable settings tailored to specific application needs. This level of customization helps in optimizing operational efficiency while safeguarding equipment.
With a power loss as low as 0.6 W, this MCCB contributes to energy conservation efforts—a crucial consideration in today's environmentally conscious market. The device's front connection type facilitates straightforward installation and maintenance processes.
Constructed with three poles and featuring an IP20 degree of protection, this MCCB offers basic protection against solid objects larger than 12 mm but should be installed within suitable enclosures for environments requiring higher levels of ingress protection.
The bolt terminal type supports secure connections while accommodating main circuit connecting capacities ranging from 85-200 sq-mm—providing flexibility across various wiring configurations. Measuring at a width of just 105 mm and weighing in at 2.5 kg, it strikes a balance between compactness and durability.
Compliance with IEC60947-2 standards underscores the quality assurance that accompanies this product—an essential aspect when adhering to international safety requirements.
Designed for use with XT4S systems, it's versatile enough to integrate seamlessly into existing setups or new installations operating on frequencies between 50/60 Hz.
In summary, whether you're upgrading current infrastructure or designing new projects from scratch within industrial or commercial domains—this MCCB delivers reliability coupled with advanced features necessary for modern electrical distribution systems.
