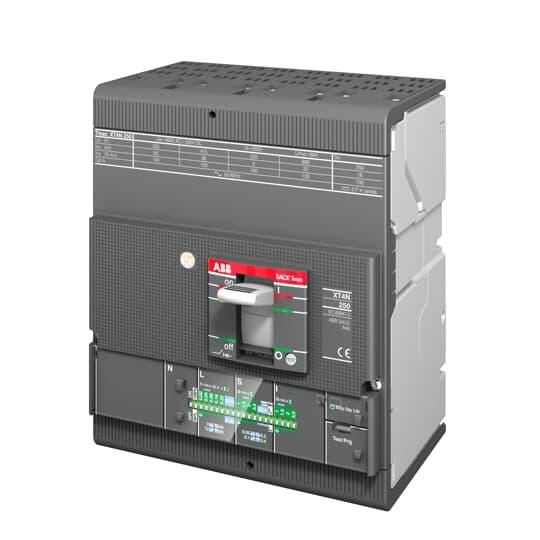

When selecting a reliable Molded Case Circuit Breaker (MCCB) for industrial or commercial applications, the key is to focus on its technical specifications and performance capabilities. This MCCB offers a robust solution with a range of features designed to meet demanding electrical distribution needs.
Rated for a current of 63 A, this MCCB provides dependable protection for your electrical systems. It's engineered to handle impulse voltages up to 8 kV and has an insulation voltage rating of 1000 V, ensuring it can withstand high-voltage environments safely. Its rated operational voltage stands at 690 VAC, making it suitable for various heavy-duty applications.
The Ekip Dip LSI trip unit is integrated into this model, offering advanced electronic protection with Long-time, Short-time, and Instantaneous settings. This ensures that the breaker reacts appropriately under different fault conditions while minimizing nuisance tripping.
With a breaking capacity of 50 kA, this MCCB is capable of interrupting significant fault currents without compromising safety or reliability. The front connection type enhances ease of installation and maintenance in panel setups.
Designed with practicality in mind, it features four poles and utilizes bolt-type terminals for secure connections. The degree of protection is IP20, indicating that it's protected against solid objects larger than 12 mm but not against liquids—suitable for controlled indoor environments.
The compact design measures just 140 mm in width and weighs approximately 3.5 kg, allowing easy integration into existing systems without requiring extensive modifications.
This MCCB also adheres to the IEC60947-2 standard, affirming its compliance with international quality benchmarks—a critical factor when considering components for safety-critical installations.
It's compatible with XT4S systems which broadens its application scope across various setups needing precise control over circuit parameters. Operating efficiently at both 50 Hz and 60 Hz frequencies makes it versatile across different regions' power standards.
Power loss during operation is minimal at only 1.4 W per pole—a testament to its energy-efficient design that reduces heat generation within panels thereby prolonging system life.
Overall this MCCB represents a balanced blend of durability efficiency and compliance tailored specifically towards meeting rigorous industry requirements while maintaining operational integrity Manufacturer Part Number: XT4S
