Brand	ABB
Design of Control Element	Toggle
L - Overload Current Setting I1 (A)	640 - 1600
Main Circuit Electrical Connection	Bolt Connection
Main Current Circuit Connection Position	Front Side
MCCB Type	XT7 Frame
Overload Release Current Setting (A)	640
Rated Instantaneous Short-Circuit Current - Ii (A)	1600
Tripping Unit	EKIP DIP LS/I
Voltage (V)	690 AC
Breaking Capacity (kA)	50
Breaking Capacity 415V AC - Icu (kA)	50
Current Rating (A)	1600
Degree of Protection	IP20
Dimensions (mm)	210W x 268H x 166D
EAN	8056221008839
No. of Poles	3
Poles	3P
Power Loss (W)	94
Rated Current (A)	1600
Rated Frequency (Hz)	50/60
Rated Insulation Voltage (V)	1000
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	690
Standards and Approvals	IEC 60947-2
Trip Unit	EKIP DIP LS/I
Trip Unit - Electronic	EKIP DIP LS/I
Version	Fixed

Moulded Case Circuit Breakers

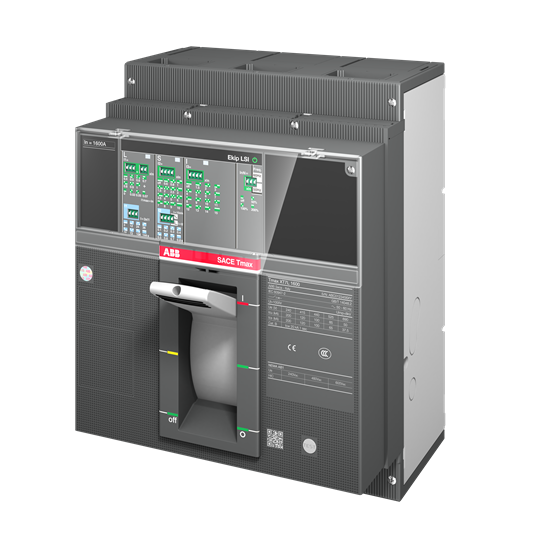

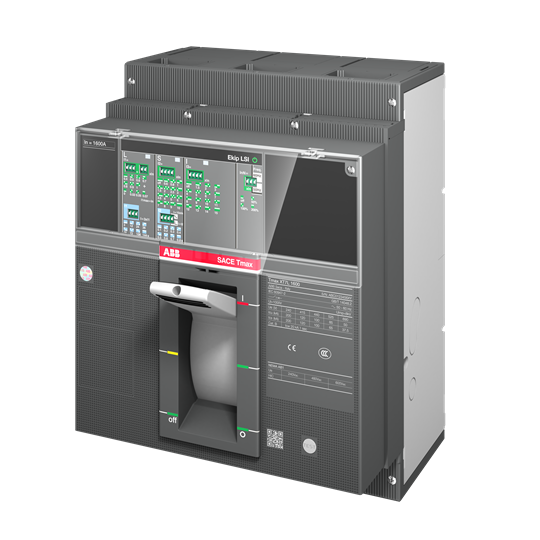

ABB XT7S 1600 EKIP DIP LS/I IN=1600A 3P F F 1SDA100829R1
