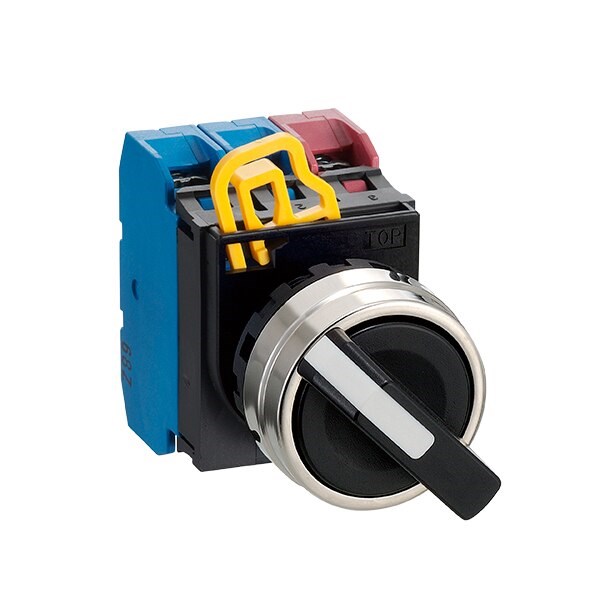

IDEC YW4S-3E30 Selector Switch 3Position 3NO Left Right Maintained Round Metal M3.5 Screw Terminal 30mm W

Product Code: YW4S-3E30

  • Selector switch with 3NO contact config
  • Rated current of 10 A, freq. 50/60 Hz
  • IP20/IP65 protection for durability
  • Operates in temps from -20 to 55°C
  • Round metal bezel, maintained function
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 30W x 41.4H x 69.8D
No. of Normally-open Contacts 3
Product Type Selector Switch
Brand IDEC
Series YW
Bezel Material Metal
Bezel Shape Round
Contact Configuration 3NO
Degree of Protection IP20, IP65
Depth 69.8 mm
Function Maintained
Height 41.4 mm
Insulation Resistance 100 MOhm
Model Maintained
Mounting Hole Diameter 22 mm
Number of Positions 3
Operation Position Left, Right
Operational Temperature -20 to 55 deg C
Rated Current 10 A
Rated Frequency 50/60 Hz
Rated Insulation Voltage 600 V
Standards and Approvals CSA C22.2 No.14, GB/TI4048.5, IEC60947-1, IEC60947-5-1, UL508
Terminal Type M3.5 Screw
Tightening Torque 1 N-m
Width 30 mm

Description

The IDEC YW4S-3E30 is a metal bezel selector switch designed for efficient use of space with its 3-position maintained functionality and compact 10mm thick contact blocks. Its lightweight design and removable operator enhance user convenience, while the separate contact block feature simplifies installation and maintenance. Ideal for streamlined operation in various industrial settings, this 22mm switch ensures durability and ease of use.
