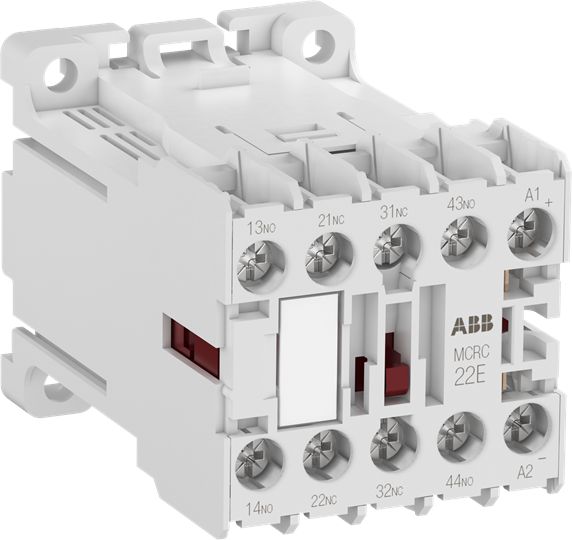

ABB MCRC022ATD MINI CONTACTOR RELAY 2NO+2NC 24VDC MCRC022ATD

Product Code: MCRC022ATD

The MCRC022ATD mini contactor relay is a dimension optimized 4 pole contactor relay with screw terminals. This device is a great solution when high performances are needed but the space is limited. Mini contactors are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 6 A / 240 V (AC-15). The product is suitable for wall or rail mounting.

Technical Specifications

Brand ABB
Series M
Mounting Type DIN Rail
Operational Temperature Range (°C) -40 to +55
Actuating Voltage Type DC
Auxiliary Contacts 2NO/2NC
Connection Type Screw Connection for Auxiliary Circuit
Mode of Operation DC
No. of Normally-closed Auxiliary Contacts 2
No. of Normally-open Auxiliary Contacts 2
No. of Poles 4
Operating Voltage AC (V) 690
Operating Voltage DC (V) 440
Operating Voltage Type DC
Power Loss (W) 0.4/pole
Rated Control Circuit Voltage DC (V) 24
Rated Control Supply Voltage DC (V) 24
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 6
Rated Insulation Voltage (V) 750
Rated Operational Current (A) 6
Rated Operational Current AC-15 240V (A) 6
Rated Operational Current AC-15 400V (A) 4
Rated Operational Voltage AC (V) 690
Short-Circuit Protective Device 10A, fuse type gG
Terminal Type Screw
Dimensions (mm) 45W x 48H x 68D
Degree of Protection IP20
