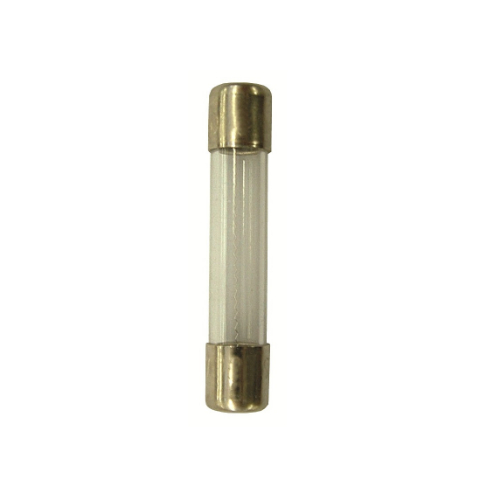

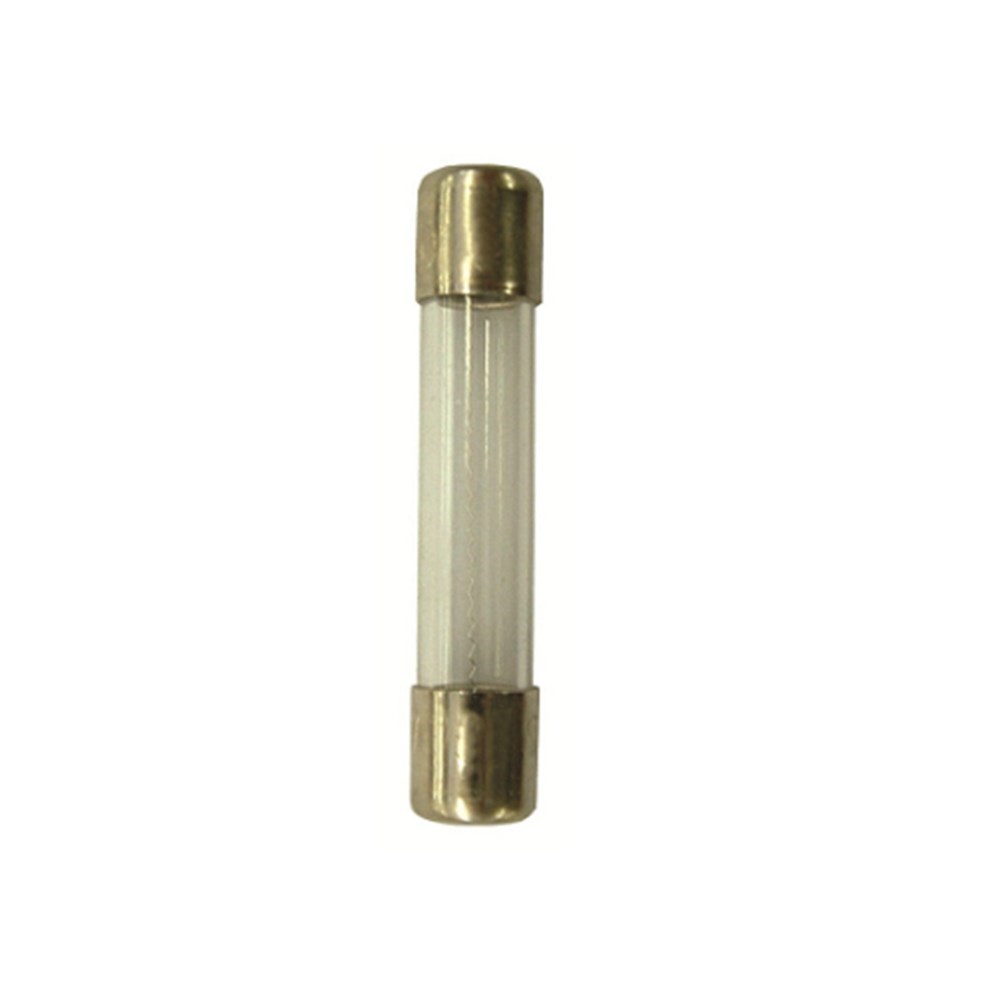

IPD MINIATURE FUSE LINK TYPE M205, 2A FAST ACTING GLASS 5X20mm AGDB2

Product Code: AGDB2

AGDB is a type of M205 miniature glass fuse link. These fuses are designed to be fast acting with low breaking capacities. They have a physical size of 5x20mm and are constructed as glass tubes with a nickel-plated brass endcap finish. The interrupting rating for AGDB fuses is 35A, and they have a voltage rating of up to 250VAC. The current rating for these fuses is 2A.

Technical Specifications

Brand IPD
Body Size (mm) 5 x 20
Functionality Fast Acting
Interrupting Rating AC (A) 35
Material Glass
Rated Current (A) 2
Rated Voltage AC (V) 250
Typical DC Cold Resistance (?) 0.043

Documents
