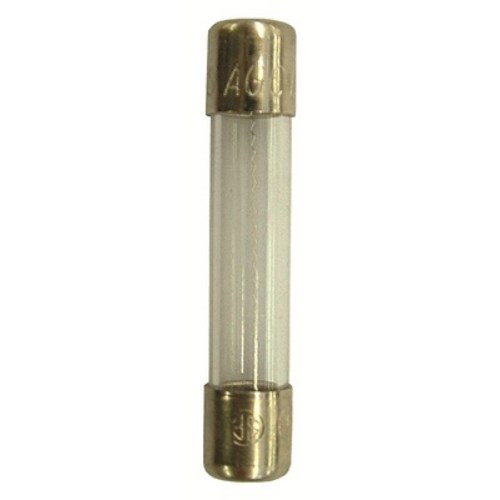

IPD AGDC6.3 Miniature Fuse Link 6.3A 250VAC Slow Blow Glass M205 Fuse 5mm Dia x 20mm L 35A Interrupt Glass Time Delay

Product Code: AGDC6.3

  • 6.3A rated current, 250VAC
  • Slow blow glass fuse for protection
  • Compact size: 5mm diameter x 20mm length
  • High interrupt rating of 35A
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Body Size (mm) 5 x 20
Functionality Time Delay
Rated Current (A) 6.3
Rated Voltage AC (V) 250
Interrupting Rating AC (A) 35
Typical DC Cold Resistance (?) 0.0071
Product Type Miniature Fuse Link
Brand IPD
Body Size 5 mm Dia x 20 mm L
Fuse Type Slow Blow Glass, M205
Interrupt Rating 35 A
Material Glass
Rated Current 6.3 A
Rated Voltage 250 VAC
Resistance 0.0071 Ohm

Description

The AGDC Series is a slow blow glass tube type M205 miniature fuse link. It comes with a nickel-plated brass endcap and is designed to meet the standards of IEC 60127-2. This fuse has a voltage rating of 250VAC and a rated current of 6.3A. Its interrupting rating at the rated voltage (50Hz) is 35A.

Documents

  • IPD Product Catalogue

    IPD Product Catalogue V17
