Monitoring Horizontal Tank Volume


How to monitor horizontal tank volume with Panasonic’s FP series PLCs

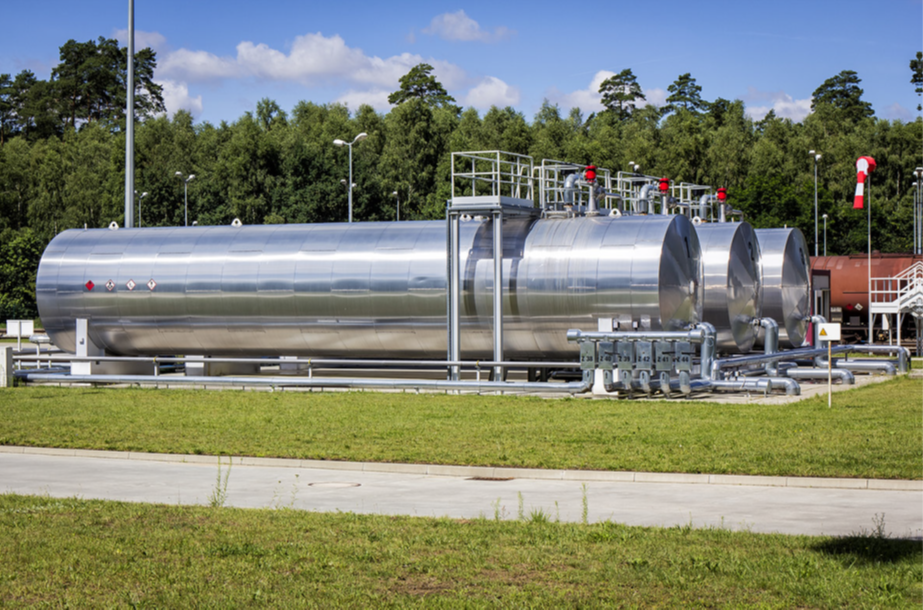

We need to determine the volume of a horizontal tank with a level sensor. Tank volume is non-linear and requires a formula for accuracy. Click more for the solution.

Solution

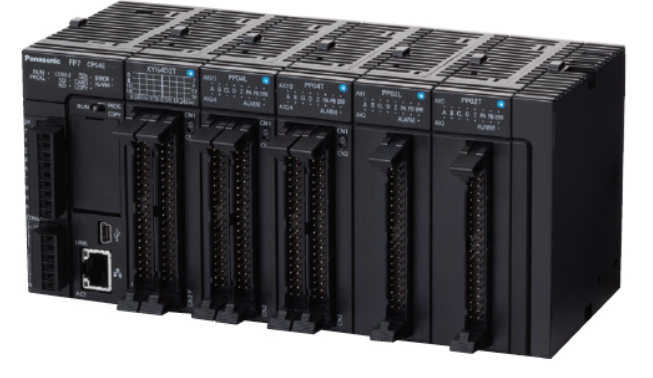

The Panasonic FP PLC series along with the IEC61131-3 compliant programming software allows the use of various programming languages and more importantly the ability for user defined function blocks.

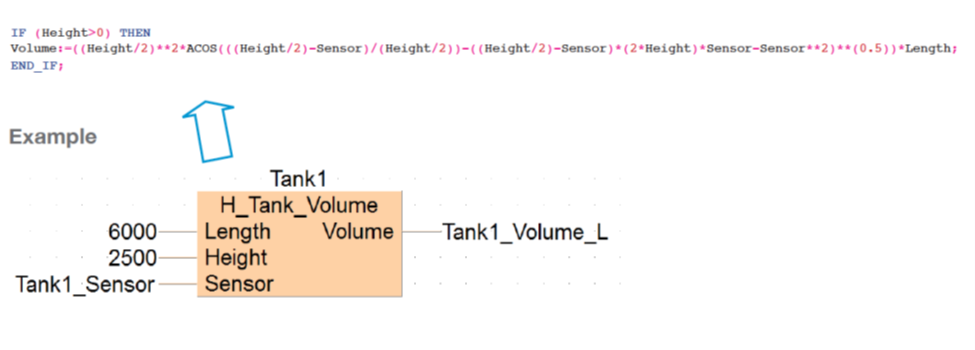

Using the known formula for a horizontal tank, the formula is entered using the structured text language.

The code is written as a reusable function block and hence easily transferrable. Various functions blocks are available from Panasonic and IPD and we can assist you to develop your own.
