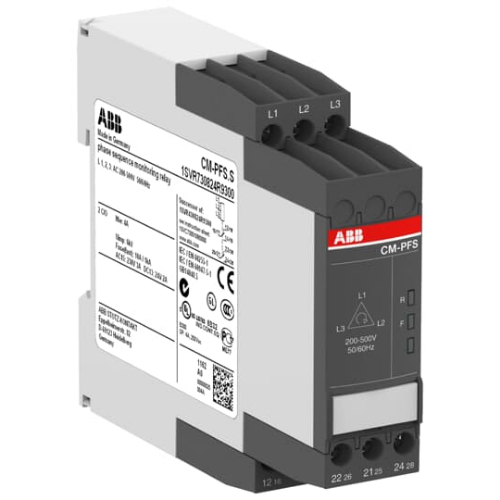

ABB CM-PFS.S 3-PHASE MONITORING RELAY 2C/O SPDT 200-500VAC

Product Code: CM-PFS.S

Multifunctional Three phase monitoring relay Monitor Phase failure detection, monitor phase sequence L1, L2, L3=200-500VAC, 200-500VAC (L-L) Measuring range, Start-up delay: 500ms Time range, 2 changeover contact, 200-500VAC (L-L) Control supply voltage 1 Width 22.5mm modules

Technical Specifications

Brand ABB
Contacts 2CO
Degree of Protection IP50 (Housing), IP20 (Terminals)
Duty Time 100%
LED Colour F: Red, R: Yellow
Measuring Range AC (V) 3 x 200-500
Mounting Type DIN Rail
No. of Phases 3
Operational Temperature Range (°C) -20 to +60
Pollution Degree 3
Rated Control Supply Voltage AC (V) 3 x 200-500
Rated Frequency (Hz) 50/60
Terminal Type Screw
Timing Range Start-up delay: 500ms
