Brand	ABB
AC Voltage (V)	690
Breaking Capacity 400V AC - Icu (kA)	66
Component Type	Withdrawable
Current Rating (A)	1600
Current Type	AC
Degree of Protection	IP30
Design of Control Element	Push Button
Dimensions (mm)	278W x 363.5H x 271D
EAN	8015644760861
Earth Fault Protection	Yes
Icw (kA/1s) - Short-time Withstand Current Rating	50
Icw (kA/3s) - Short-time Withstand Current Rating	30
Indication	Switched-off Indicator
Iu - Uninterrupted Current Rating (A)	1600
Main Circuit Electrical Connection	Connection at Separate Chassis Part
Main Current Circuit Connection Position	Connection at Separate Chassis Part
No. of Auxiliary Change-over Contacts	4
No. of Poles	3
Overload Release Current Setting (A)	640
Poles	3P
Power Loss (W)	400
Rated Current (A)	1600
Rated Impulse Withstand Voltage (kV)	12
Rated Instantaneous Short-Circuit Current - Ii (A)	2400
Rated Insulation Voltage AC (V)	1000
Rated Short-time Withstand Current - Icw (kA/1s)	50
Rated Short-time Withstand Current - Icw (kA/3s)	30
Rated Uninterrupted Current - Iu (A)	1600
Rated Voltage (V)	690
Rated Voltage AC (V)	690
Suitable For	E1.2
Trip Unit	EKIP Touch LSIG
Trip Unit - Electronic	EKIP Touch LSIG
Version	Withdrawable

Air Circuit Breakers

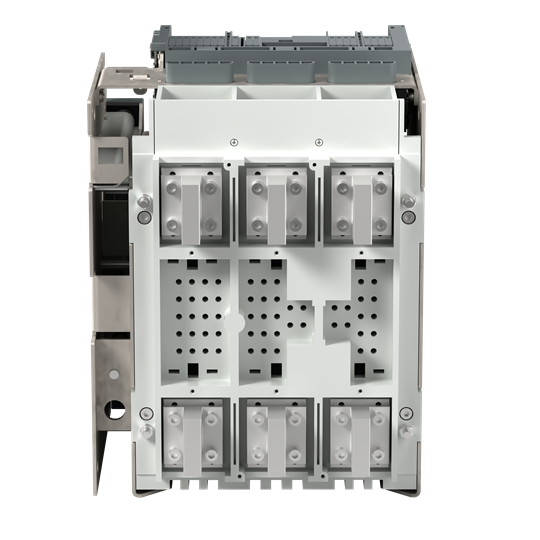

ABB E1.2N 1600 EKIP TOUCH LSIG 3P WMP 1SDA072236R1
