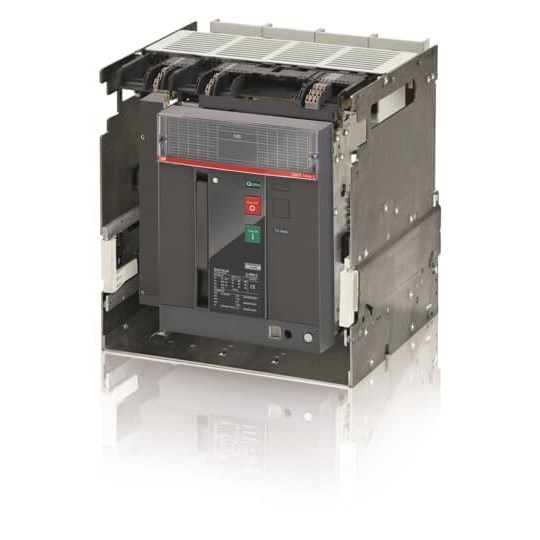

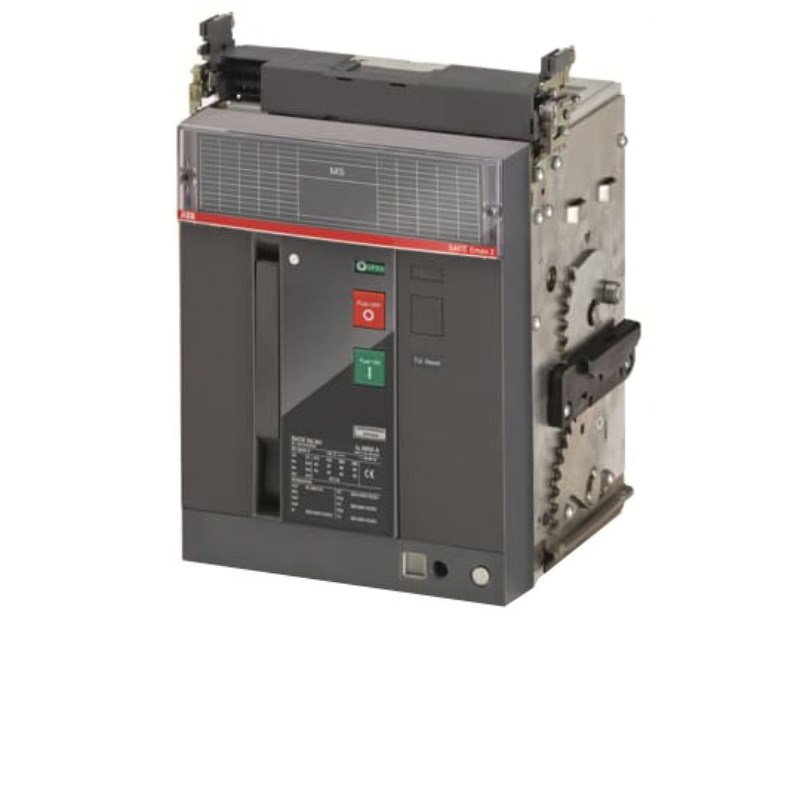

ABB 1SDA073538R1 Switch Disconnector 2500A 4-P W Version

Product Code: 1SDA073538R1

  • Non-auto ACB with 2500 A rating
  • 12 kV impulse withstand voltage
  • Rated for 690 VAC applications
  • IP30 protection with 4 poles
  • Compact size: 407x425x383 mm
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Dimensions (mm) 425H x 407W x 383D
No. of Poles 4P
Power Loss (W) 550
Rated Current (A) 2500
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage AC (V) 1000
Rated Short-time Withstand Current - Icw (kA/1s) 85
Rated Uninterrupted Current - Iu (A) 2500
Rated Short-time Withstand Current - Icw (kA/3s) 66
Poles 4P
Current Rating (A) 2500
AC Voltage (V) 690
Icw (kA/1s) - Short-time Withstand Current Rating 85
Icw (kA/3s) - Short-time Withstand Current Rating 66
Iu - Uninterrupted Current Rating (A) 2500
Rated Voltage (V) 690
Product Type Switch Disconnector
Brand ABB
Component Type Withdrawable
Current Type AC
Degree of Protection IP30
Depth 383 mm
Height 425 mm
Number of Poles 4
Power Loss 550 W
Rated Current 2500 A
Rated Impulse Withstand Voltage 12 kV
Rated Insulation Voltage 1000 V
Rated Voltage 690 VAC
Standards and Approvals IEC 309
Version Withdrawable
Weight 55 kg
Width 407 mm
