Specifications

Dimensions (mm)	128W x 80H x 42D
Operational Temperature Range (°C)	-40 to 85
Weight (g)	250
Maximum Continuous Voltage DC (V)	65
Maximum Continuous Voltage AC (V)	46
Maximum Discharge Current (8/20µs) (kA)	20

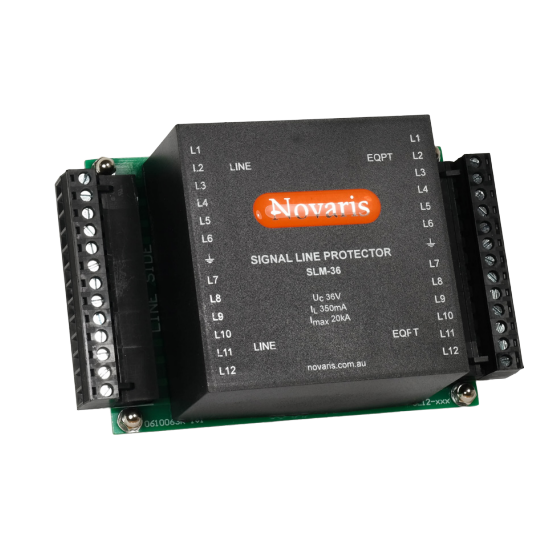

Product Type	Multiline Signal Line Protector
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Depth	42 mm
Height	80 mm
Humidity	5-95%
Modes of Protection	Transverse and Common Modes
Mounting Type	Panel
Number of Lines	12
Operational Temperature	-40 to 85 deg C
Rated Current	20 kA
Rated Short Circuit Current	2 A
Rated Voltage	65 VDC
Resistance	8.2 Ohm
Standards and Approvals	IEC61643-21, ITU-T K.44, AS/NZS 1768, IEEE C62.41, UL497B
Tightening Torque	0.5 N-m
Weight	250 g
Width	128 mm
