When selecting a reliable component for your industrial or commercial setup, understanding the technical specifications is crucial. This product offers a comprehensive solution with its versatile features and robust design, ensuring it meets rigorous demands while maintaining operational efficiency.

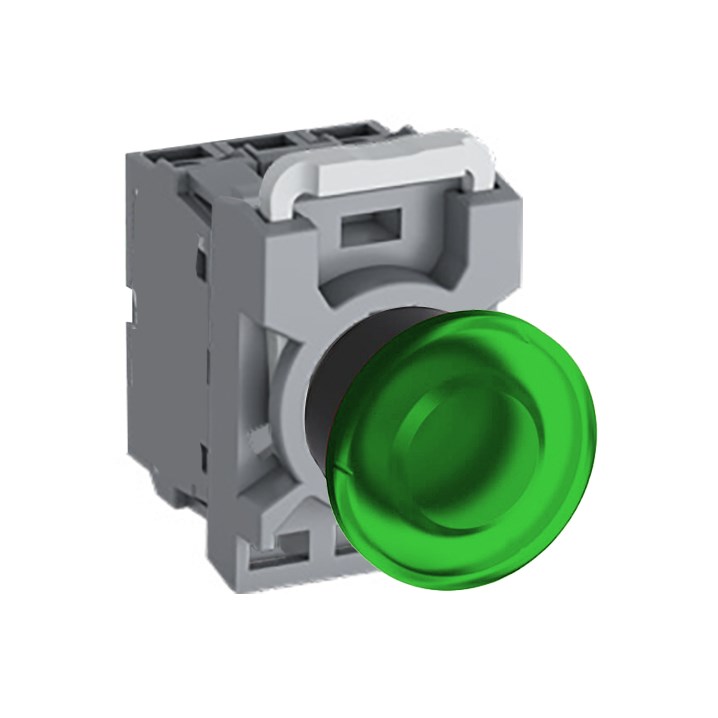

Operating at a rated voltage of 12 VAC/DC, this illuminated component is designed to perform efficiently in diverse environments. The illumination feature is powered by a green LED lamp, providing clear visibility and enhancing operational functionality. Its momentary function ensures that the device operates only when actuated, making it ideal for applications requiring temporary activation.
The product's resilience is evident in its operational temperature range of -25 to 70 degrees Celsius, allowing it to function effectively in various climatic conditions. With an IP66 degree of protection on the front and IP20 at the terminal, it offers excellent resistance against dust ingress and water jets from any direction—suitable for harsh industrial settings.
Conforming to several standards and approvals such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, this product assures compliance with international safety norms. It also holds UL 508 and CSA C22.2 No. 14 certifications which are critical for North American markets.
The rated insulation voltage stands at an impressive 690 V while offering a rated impulse withstand voltage of up to 6 kV—a testament to its durability against transient overvoltages often encountered in electrical systems.
Featuring a contact configuration of 2NC (two normally closed contacts), this device provides reliable circuit continuity until activated—ideal for fail-safe operations where breaking the circuit signals an alert or initiates corrective actions.
With a diameter and cutout size both measuring at 40 mm, installation becomes straightforward without compromising on space or design aesthetics. The bezel material made from plastic ensures lightweight construction without sacrificing strength or durability.
Rated thermal current capacity reaches up to 10 A which supports substantial load requirements typical within industrial applications. The inclusion of essential components like an operator contact block contact block holder and LED block further simplifies assembly reducing downtime during maintenance or replacement procedures.
This well-rounded product promises not just performance but peace of mind through adherence to strict quality standards making it a fitting choice for professionals seeking reliability backed by technical excellence.
