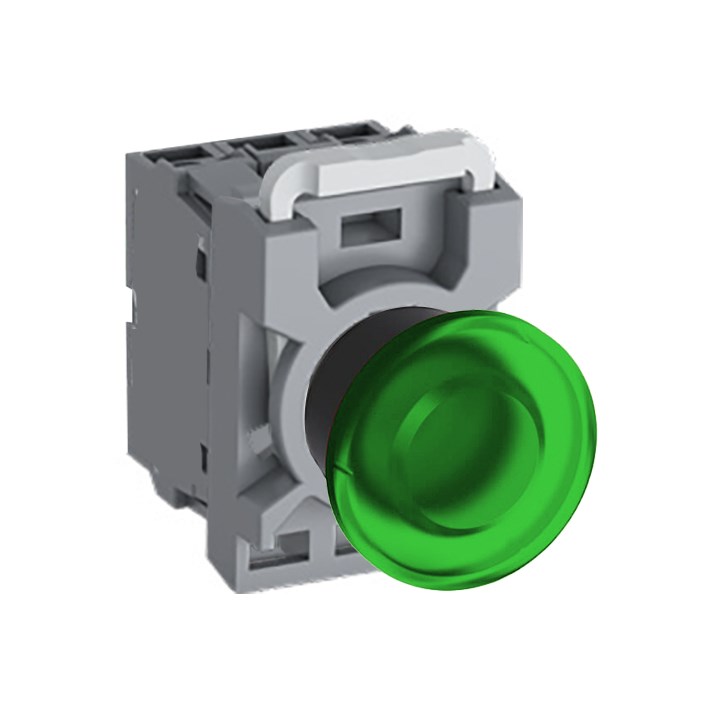

ABB MPMI4G020 Illuminated Pushbutton Kit 40mm Momentary Green 12VAC/DC 2NO

Product Code: MPMI4G020

  • 12V AC/DC illuminated LED with green lamp
  • Robust IP66 front protection
  • Operates in -25 to 70°C range
  • Momentary function with 2NO contacts
  • Includes operator, contact block, and holder
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 2NO
LED Block Rated Voltage 12 VDC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Green
Contact Configuration 2NO
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Green
Lamp Type LED
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 12 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14
