When selecting an industrial control device, especially for demanding environments like mining or construction, the details matter. This illuminated pushbutton switch is designed with durability and functionality at its core, making it a reliable choice for various heavy industry applications.
Operating on a rated voltage of 24 VAC/DC, this device ensures compatibility with most low-voltage systems. Its illumination feature is powered by an LED lamp in green, offering clear visibility even in dimly lit environments. The LED technology not only enhances visibility but also promises longevity and energy efficiency.
The product boasts a robust degree of protection with an IP66 rating, ensuring that it can withstand dust ingress and powerful water jets from any direction—ideal for harsh conditions typically found in mining or construction sites. Compliance with standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, UL 508 and CSA C22.2 No. 14 further underscores its reliability and safety credentials.
With an ambient operating temperature range from -30 to 70 degrees Celsius, this switch can function effectively across extreme climates without compromising performance. The connection type is screw-based for secure attachment which simplifies installation and maintenance processes.
The rated insulation voltage stands at a high level of 690 V while the rated impulse withstand voltage is set at 4 kV providing significant protection against transient overvoltages—a crucial feature when dealing with electrical surges common in industrial settings.

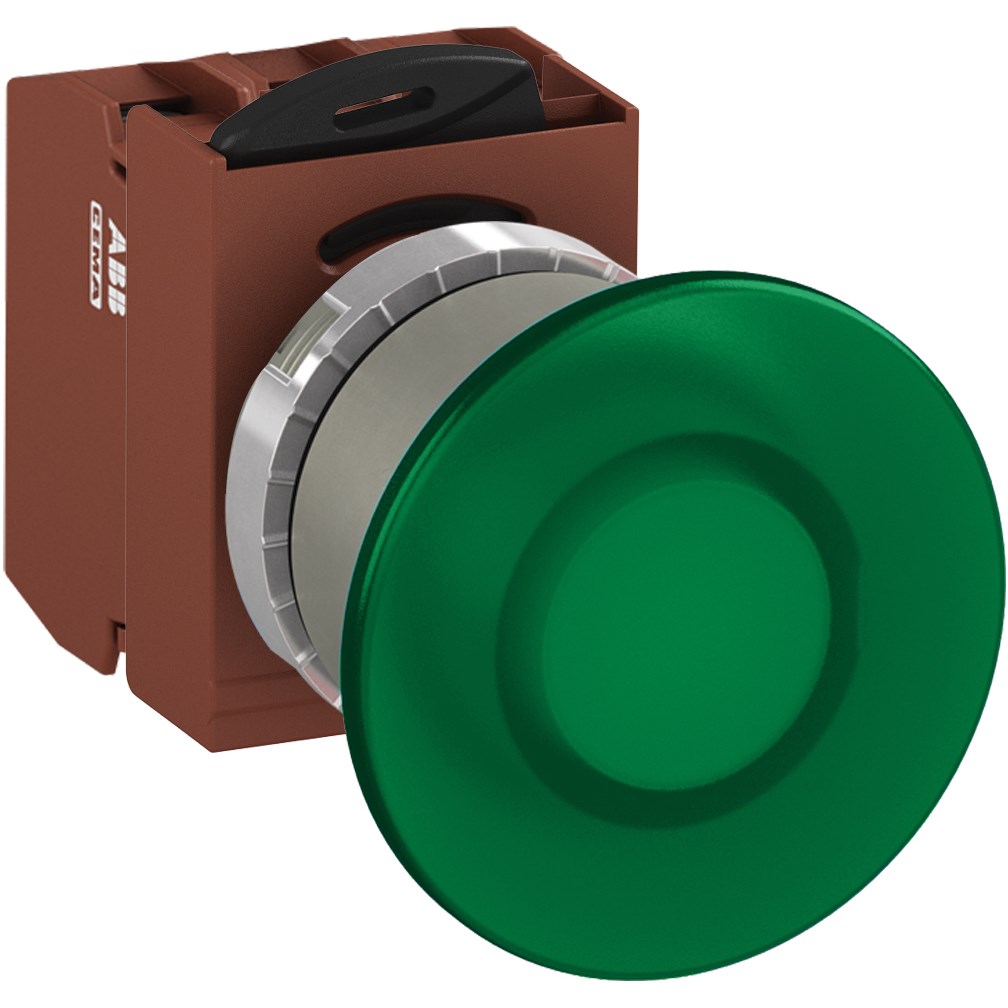

Featuring a mushroom actuator type with a diameter of 40 mm this switch offers easy operation even when wearing gloves—a practical consideration for operators on-site. The contact configuration consists of one normally open (NO) and one normally closed (NC) contact allowing flexibility in circuit design.
It supports a rated thermal current up to 10 A suitable for various load requirements within its application scope. Constructed from metal the bezel adds to the product's durability ensuring it can endure physical impacts typical in busy work environments.
Installation requires a cutout size matching the actuator diameter at 40 mm simplifying integration into existing panels or new setups alike. Included components such as the operator contact block maintained accessories LED block and LED streamline procurement by bundling necessary parts together reducing downtime during setup or replacement tasks.
This product's light blocks are based on LED technology contributing to lower maintenance needs due to extended lifespan compared to traditional lighting solutions thus optimizing operational costs over time.
