This industrial-grade illuminated pushbutton switch is designed to meet the rigorous demands of mining, construction, and heavy industry applications. Operating at a rated voltage of 110 VAC/DC, it ensures reliable performance across various electrical systems. The device is engineered with a robust IP66 degree of protection, making it highly resistant to dust and water ingress—ideal for harsh environments.
Compliant with multiple international standards such as EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications, this product guarantees safety and reliability in its operation. It features an ambient temperature range from -30 to 70 degrees Celsius, allowing it to function effectively in extreme conditions.
The connection type utilizes Faston terminals for quick and secure installation. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, the device offers excellent electrical isolation and surge protection capabilities.

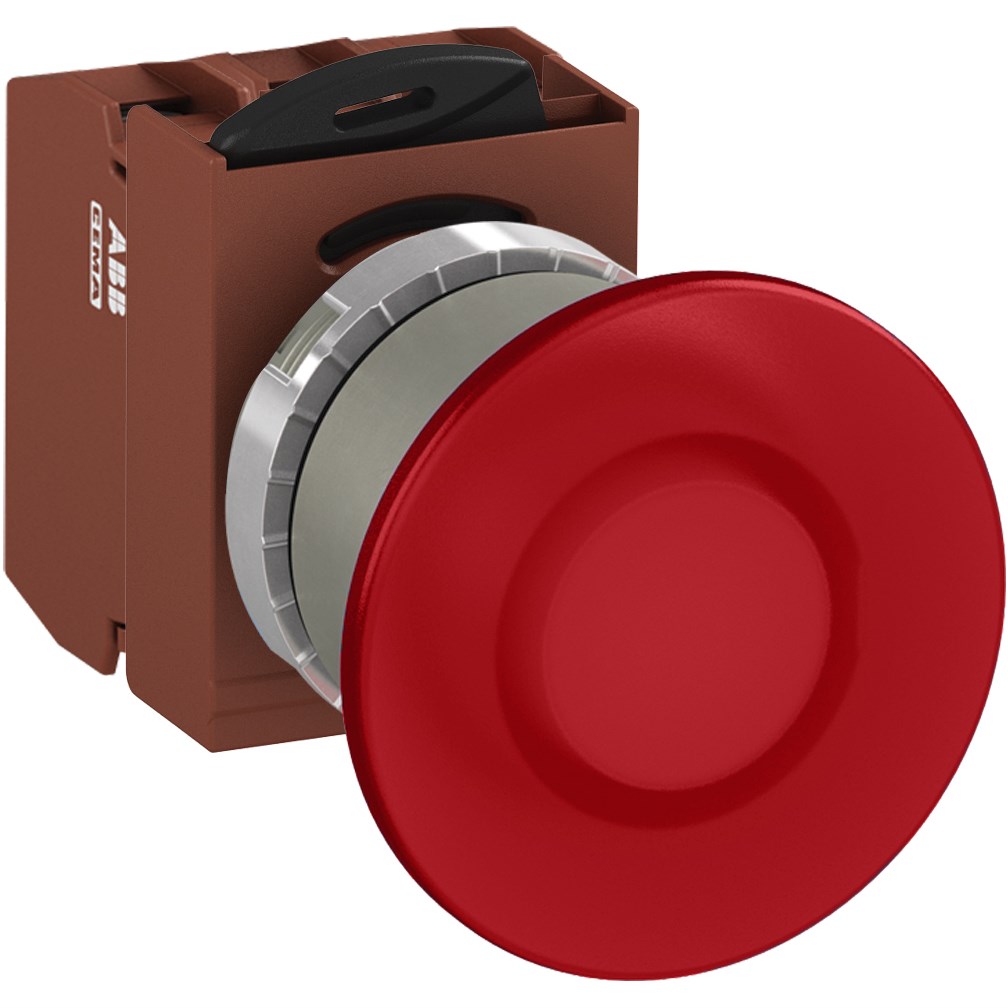

Designed with a mushroom actuator type that has a diameter of 40 mm, this switch provides easy accessibility for operators even when wearing gloves—a crucial feature in industrial settings where rapid response is necessary. The contact configuration includes both normally open (1NO) and normally closed (1NC) contacts offering versatile control options.
The red lamp color enhances visibility during operation while utilizing the BA9S lamp type known for its durability and efficiency. This maintained function switch ensures that once activated it remains engaged until manually reset which can be critical for emergency stop applications or other controlled processes requiring sustained engagement.
With a rated thermal current capacity of up to 10 A the device supports powerful operational loads without compromising safety or performance integrity thanks also partly due its metal bezel material providing additional mechanical strength against impact damage common within industrial environments.
Installation requires a cutout size matching its actuator diameter at precisely forty millimeters ensuring compatibility with standard panel designs reducing installation complexity significantly further aided by included components such as operator contact block maintained accessories power supply lamp block along lamps themselves simplifying procurement logistics maintaining streamlined workflows throughout deployment phases across sites globally ensuring consistent equipment availability minimizing downtime risks associated non-standardized parts usage discrepancies potentially encountered otherwise during project execution periods especially within time-sensitive sectors like mining construction heavy industries reliant upon seamless operations continuity daily basis ultimately resulting increased productivity levels overall organizational success metrics achievement long-term strategic objectives realization efficiently cost-effectively sustainably responsibly environmentally conscious manner Manufacturer Part Number:
