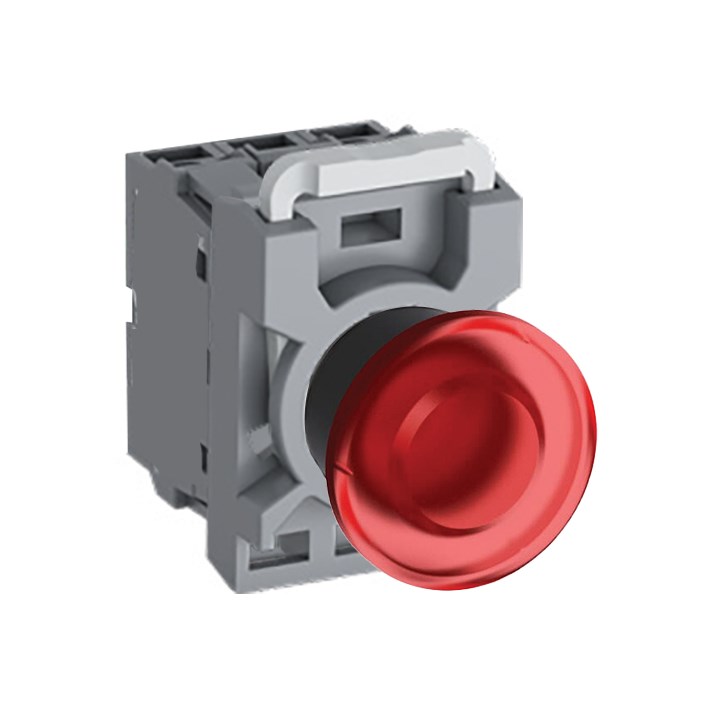

When it comes to selecting reliable components for industrial and commercial applications, technical specifications are paramount. This illuminated push button is designed with precision and durability in mind, making it a practical choice for professionals seeking dependable performance.
Operating within a rated voltage of 110-130 VAC/DC, this device offers versatility across various electrical systems. The illumination feature enhances visibility in operational settings, further supported by the red LED lamp which ensures clear indication during use. With an operational temperature range from -25 to 70 degrees Celsius, this component is well-suited for environments that experience fluctuating temperatures.
The degree of protection offered by this product is noteworthy: IP66 at the front provides robust resistance against dust and powerful water jets, while IP20 at the terminal ensures basic protection against finger contact. These ratings make it ideal for challenging conditions where exposure to elements is a concern.
Compliant with several rigorous standards and approvals—EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others—it meets international safety and reliability benchmarks. Additionally certified under UL 508 and CSA C22.2 No. 14 standards, users can trust its compatibility with North American regulations.
This device features a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV—attributes that underscore its robustness in handling high-voltage scenarios without compromising safety or performance. The contact configuration includes one normally open (NO) and one normally closed (NC) contact allowing flexibility in circuit design.
With a diameter of 40 mm matching the cutout size exactly, installation is straightforward ensuring seamless integration into existing panels or setups. The momentary function allows for temporary activation—a common requirement in many control applications—and supports operations requiring immediate response but no sustained action.
Constructed with a plastic bezel material that balances durability with weight considerations, this push button maintains structural integrity while being user-friendly during installation or maintenance activities. Rated thermal current stands at an impressive 10 A providing ample capacity for typical industrial loads without overheating concerns.
Included components such as the operator unit along with contact block holder and LED block ensure you have everything needed right out of the box—streamlining setup processes significantly while minimizing additional procurement efforts.
In summary this illuminated push button combines technical rigor with practical usability making it an excellent option for those seeking reliable control solutions within their systems ensuring both compliance with industry standards as well as operational efficiency over time.
