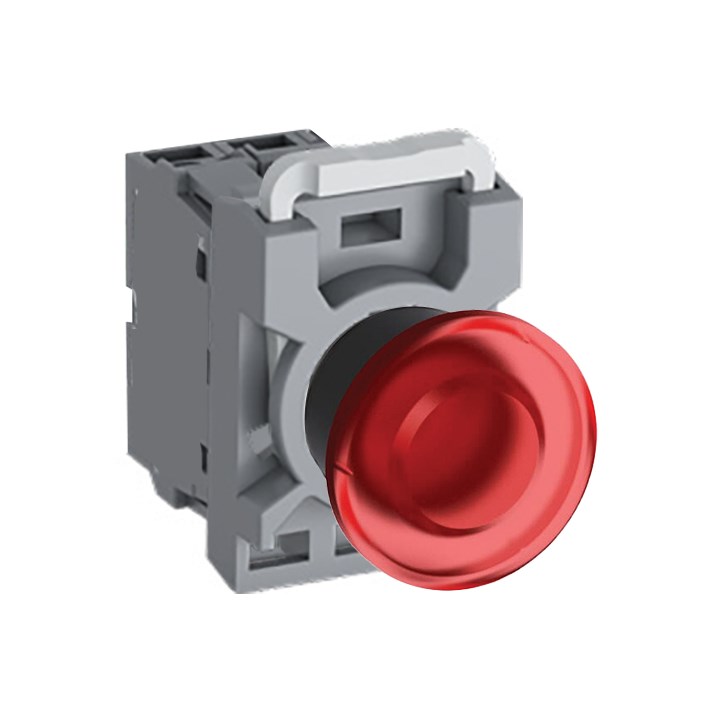

When evaluating a robust, reliable illuminated pushbutton for industrial or commercial applications, this product stands out with its well-rounded technical specifications. Designed to operate efficiently in diverse environments, it offers a rated voltage of 24 VAC/DC and features an LED illumination system that ensures visibility even in low-light conditions.
This pushbutton is engineered to function optimally across a wide operational temperature range from -25°C to 70°C. This makes it suitable for various settings where temperature fluctuations are common. The degree of protection is noteworthy; with IP66 at the front ensuring resistance against dust and powerful water jets, while the terminal side holds an IP20 rating.
Safety and compliance are paramount, and this product meets several international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 for control circuit devices and switching elements. It also adheres to standards like UL 508 and CSA C22.2 No. 14 which are crucial for North American markets.
The unit boasts a rated insulation voltage of up to 690 V and can withstand impulse voltages up to 6 kV, underscoring its robustness in handling electrical stress. The contact configuration is straightforward with one normally open (1NO) contact setup which simplifies integration into existing systems.
With a diameter of 40 mm and cutout size matching at the same dimension, installation is streamlined without needing additional modifications or adapters. The red LED lamp provides clear signaling that aligns with standard color codes used in emergency stop functions or critical notifications.
The momentary function allows for immediate actuation response when pressed but does not maintain position once released—ideal for operations requiring temporary engagement like machine start/stop commands.
This device supports a thermal current rating up to 10 A which ensures it can handle significant load currents without overheating issues during regular operation cycles.
Constructed with durability in mind, the bezel material is plastic offering both resilience against impact as well as cost-effectiveness compared to metal alternatives while maintaining aesthetic appeal within control panels.
Included components such as the operator mechanism along with contact block holder facilitate quick assembly reducing downtime during replacements or upgrades without sacrificing reliability over time thanks to its solid design framework.
