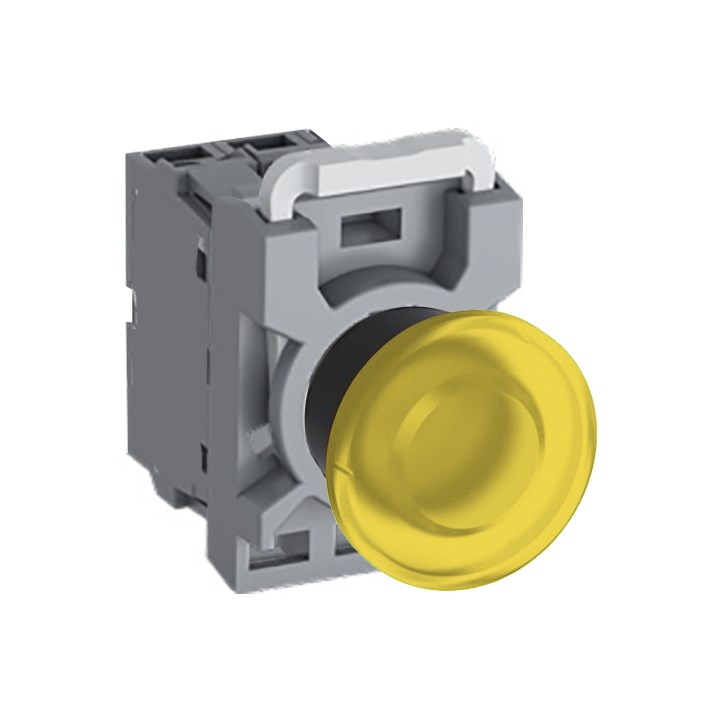

ABB MPMI4Y210 Illuminated Pushbutton Kit 40mm Momentary Yellow 110-130VAC/DC 1NO

Product Code: MPMI4Y210

  • Illuminated pushbutton with yellow LED
  • IP66 front protection for durability
  • Operates in -25 to 70°C environments
  • Momentary function with 1NO contact
  • Rated for 110-130 VAC/DC use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Rated Voltage AC (V) 110 - 130
LED Block Rated Voltage 110-130 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Yellow
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type LED
LED Colour Yellow
Mode of Operation Momentary
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 110-130 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Mushroom Pushbutton Kit is a yellow, 40mm diameter button that features a momentary function. It comes with an integrated yellow LED and operates on a voltage range of 110-130 VAC. The pushbutton has a single normally open (1NO) contact. It is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
