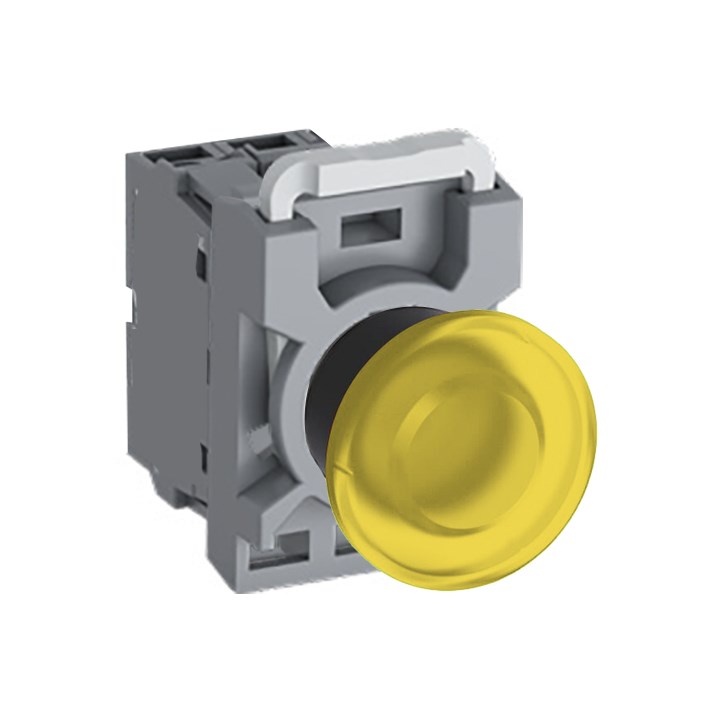

This industrial-grade illuminated pushbutton switch is engineered to meet the rigorous demands of commercial applications. Designed with a rated voltage of 12 VAC/DC, it ensures reliable performance in various electrical systems. The LED illumination, available in a striking yellow hue, enhances visibility and operational efficiency.
Built to withstand harsh environments, this switch boasts an IP66 front protection rating, which safeguards against dust and powerful water jets. Meanwhile, the terminals are protected by an IP20 rating to prevent finger contact with live parts. Its operational temperature range spans from -25 to 70 degrees Celsius, making it suitable for diverse climates.
The switch adheres to several stringent standards and approvals including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 and more. These certifications underscore its compliance with international safety and performance benchmarks such as UL 508 and CSA C22.2 No. 14.
With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV, this switch is equipped for high-voltage applications while maintaining user safety. It features a momentary function with a contact configuration of one normally closed (1NC) contact that provides intuitive control over connected devices.
The device's diameter measures at 40 mm with both the bezel material crafted from durable plastic ensuring longevity even under frequent use conditions. The cutout size matches the diameter allowing for straightforward installation into compatible panels or enclosures.
Capable of handling currents up to a rated thermal current of 10 A this pushbutton is designed not only for resilience but also versatility across different setups whether it be new installations or retrofitting existing ones.
Included in the package are essential components such as an operator contact block contact block holder and LED block providing everything needed for seamless integration into your system setup without requiring additional purchases or modifications.
