Product Code: MPMI4Y010

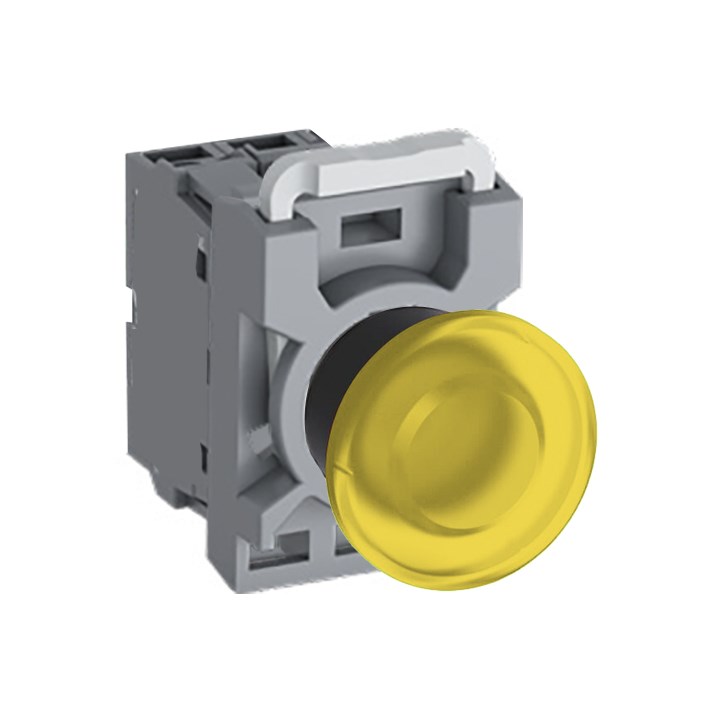

Illuminated pushbutton with yellow LED
IP66 front protection for harsh environments
Operates in -25 to 70°C temperature range
12 VAC/DC rated voltage, 10A thermal current
Includes operator, contact block & LED block

Specifications

Contacts	1NO
Rated Voltage DC (V)	12
LED Block Rated Voltage	12 VDC
Bezel Material	Plastic
Product Type	Pushbutton Kit
Brand	ABB
Actuator Type	Mushroom 40mm
Bezel Material	Plastic
Colour	Yellow
Contact Configuration	1NO
Cutout Size	40 mm
Degree of Protection	IP66 Front, IP20 Terminal
Diameter	40 mm
Function	Momentary
Illumination	Illuminated
Includes	Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour	Yellow
Lamp Type	LED
LED Colour	Yellow
Mode of Operation	Momentary
Operational Temperature	-25 to 70 deg C
Rated Impulse Withstand Voltage	6 kV
Rated Insulation Voltage	690 V
Rated Thermal Current	10 A
Rated Voltage	12 VAC/DC
Standards and Approvals	EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

The Illuminated Mushroom Pushbutton Kit is a yellow, 40mm diameter button that features a momentary function. It comes with an integrated yellow LED and operates on a 12V DC power supply. The button has a single normally open (1NO) contact. This kit is part of a modular plastic range and has an IP66 rating for the front and an IP20 rating for the terminals.
