When selecting a pushbutton for industrial or commercial applications, it's essential to consider the technical specifications that ensure reliability and compatibility with your existing systems. This pushbutton offers a robust solution with its well-rounded features tailored for demanding environments.

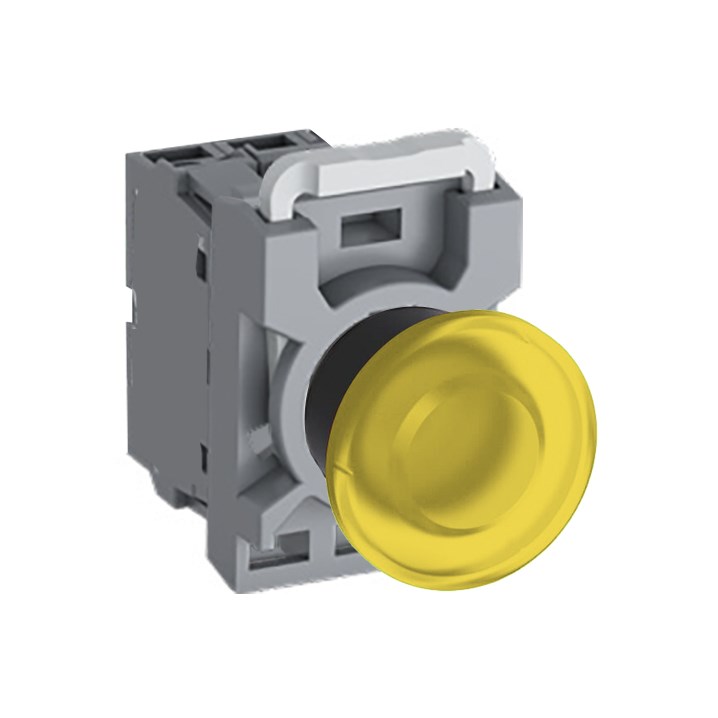

Designed to operate at a rated voltage of 220 VDC, this illuminated pushbutton is perfect for applications requiring clear visual indication. The yellow LED illumination ensures visibility even in low-light conditions, making it an excellent choice for safety-critical operations.
The operational temperature range of -25 to 70 degrees Celsius assures functionality across various environmental conditions. Whether you're dealing with extreme cold or heat, this component maintains its performance integrity, ensuring uninterrupted operation.
With a degree of protection rated at IP66 on the front and IP20 at the terminal, this pushbutton is built to withstand dust ingress and powerful water jets from any direction while maintaining basic protection against finger contact on terminals. These ratings make it suitable for both indoor and outdoor installations where exposure to harsh elements might be a concern.
Conforming to multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others, along with UL 508 and CSA C22.2 No. 14 approvals, you can trust in its compliance with global safety requirements.
The contact configuration is set as normally open (1NO), providing straightforward integration into control circuits where momentary action is required. This function allows the circuit to be completed only when the button is actively pressed—ideal for start functions or other temporary commands.
In terms of electrical endurance, it boasts a rated insulation voltage of 690 V and an impressive rated impulse withstand voltage of up to 6 kV—features that highlight its capacity to handle transient overvoltages effectively without compromising safety or performance.
The bezel material made from plastic provides durability while keeping costs manageable—a practical choice balancing robustness with economic efficiency. The cutout size matches the diameter at 40 mm ensuring easy installation without additional modifications needed on standard panels.
Included in this package are all necessary components: operator unit itself along with the contact block holder and LED block—streamlining setup time by offering everything you need right out of the box.
Overall if you’re looking for reliability combined with ease-of-use in your next project look no further than this thoughtfully engineered pushbutton solution designed specifically around industry needs delivering consistent high-quality results every time.
