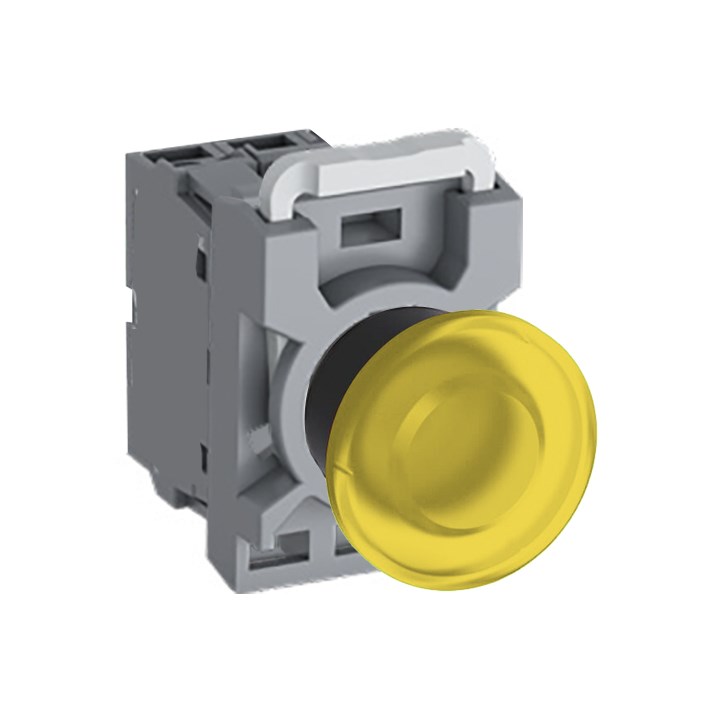

ABB MPMI4Y410 Illuminated Pushbutton Kit 40mm Momentary Yellow 230VAC/DC 1NO

Product Code: MPMI4Y410

  • Illuminated yellow LED for clear visibility
  • Operates at 230V AC/DC, 10A thermal current
  • IP66 front protection against dust and water
  • Momentary function with 1NO contact config
  • Durable plastic bezel, fits 40mm cutout
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Contacts 1NO
Mushroom Diameter (mm) 40
Rated Frequency (Hz) 50/60
Rated Voltage AC (V) 230
LED Block Rated Voltage 230 VAC
Bezel Material Plastic
Product Type Pushbutton Kit
Brand ABB
Actuator Type Mushroom 40mm
Bezel Material Plastic
Colour Yellow
Contact Configuration 1NO
Cutout Size 40 mm
Degree of Protection IP66 Front, IP20 Terminal
Diameter 40 mm
Function Momentary
Illumination Illuminated
Includes Operator, Contact Block, Contact Block Holder and LED Block
Lamp Colour Yellow
Lamp Type LED
LED Colour Yellow
Operational Temperature -25 to 70 deg C
Rated Impulse Withstand Voltage 6 kV
Rated Insulation Voltage 690 V
Rated Thermal Current 10 A
Rated Voltage 230 VAC/DC
Standards and Approvals EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529, EN 50013, DIN 40050-9, UL 508, CSA C22.2 No. 14

Description

This Illuminated Yellow Pushbutton is designed for engineers and comes in a 60mm diameter size. It features a 1NO contact and operates at 230VAC. The kit includes an operator, contact blocks, and a contact block holder from the Modular plastic range.
