When selecting a reliable and robust industrial control component, understanding the technical specifications is crucial. This non-illuminated mushroom actuator provides a sturdy solution for various industrial applications. Designed with an IP66 front degree of protection, it ensures resistance against dust and powerful water jets, making it suitable for harsh environments. The terminal side offers an IP20 rating, providing basic protection against finger contact.
This product meets several international standards and approvals, including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These endorsements assure compliance with global safety and operational benchmarks.
Operating efficiently within a wide ambient temperature range from -25 to 70 degrees Celsius ensures versatility in diverse climatic conditions. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 6 kV, this device is engineered to handle significant electrical demands safely.
The contact configuration features two normally open (2NO) contacts which are ideal for applications requiring straightforward on/off operations without complex wiring setups. It supports a rated thermal current of up to 10 A ensuring adequate handling capacity for moderate electrical loads.

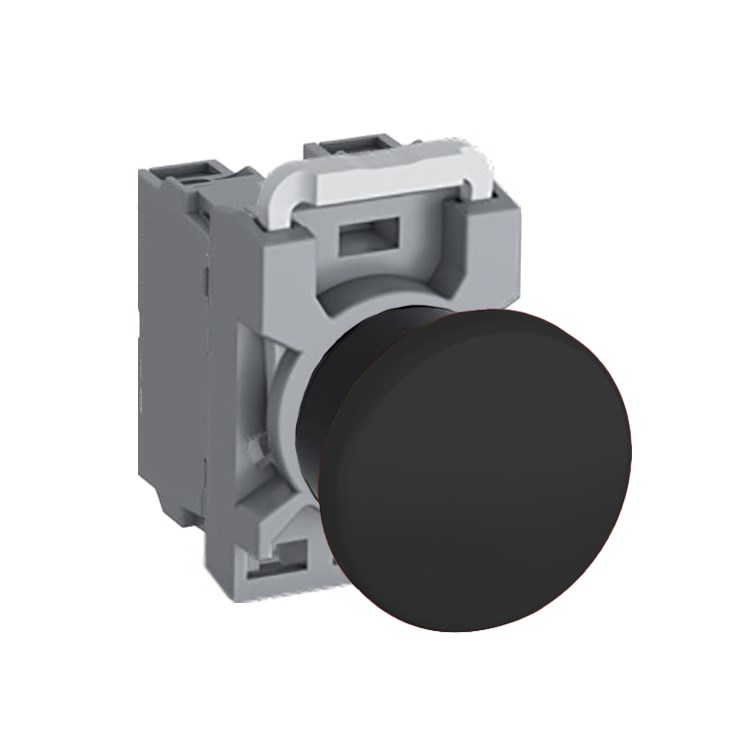

The actuator itself is designed as a mushroom type with a diameter of 40 mm offering easy operation even in emergency situations or when wearing gloves. Crafted from durable plastic material the bezel complements its rugged design while maintaining cost-effectiveness.
Installation requires precision yet simplicity with its cutout size also measuring at 40 mm ensuring compatibility with standard panel designs reducing potential modifications during setup.
Finished in black the button adds an understated yet professional look suitable for any industrial setting where functionality takes precedence over aesthetics but does not compromise on appearance either.
Included components such as the operator contact block and contact block holder provide everything needed for seamless integration into your existing systems streamlining procurement processes by eliminating additional purchases or compatibility concerns.
