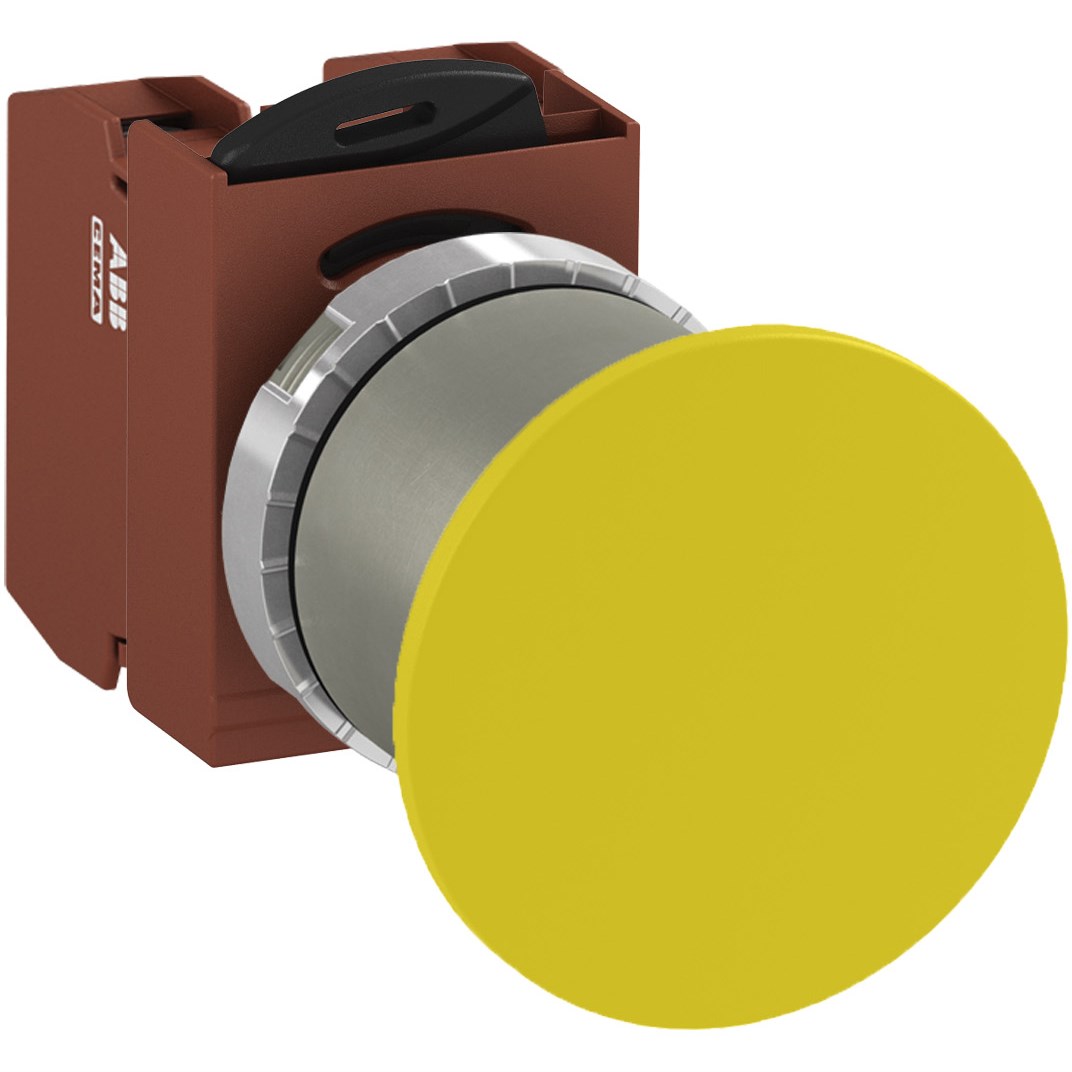

The non-illuminated mushroom actuator button is a robust and reliable choice for those in mining, construction, and heavy industry sectors. Designed with practicality in mind, this device ensures durability under challenging conditions. It boasts an IP66 degree of protection, providing excellent resistance against dust and powerful water jets from any direction.
This product meets several key standards and approvals including EN IEC 60947-5-1, EN IEC 60947-5-5, EN IEC 60073, EN IEC 60529 as well as UL 508 and CSA C22.2 No. 14 certifications. These credentials attest to its compliance with international safety protocols.
Operating efficiently within a wide ambient temperature range from -30 to 70 degrees Celsius, this button adapts well to various environmental conditions encountered in industrial settings.
The connection type is screw-based which offers secure installation and maintenance ease. With a rated insulation voltage of up to 690 V and a rated impulse withstand voltage of 4 kV, the button ensures reliable performance even under high-stress electrical environments.
Featuring a contact configuration of one normally open (NO) and one normally closed (NC) contact setup, it provides flexibility for integration into diverse control systems.
The actuator itself is designed as a maintained function mushroom type with a sizable diameter of 40 mm for easy operation even when wearing gloves or other protective gear common in industrial applications.
Constructed with metal bezel material for enhanced durability against mechanical impacts or wear over time, the cutout size matches the actuator diameter at 40 mm ensuring seamless panel integration.
Its yellow button color enhances visibility making it easily identifiable during operations which require quick actuation for safety or operational purposes.
With a rated thermal current capacity of up to 10 A this product can handle substantial electrical loads typical in demanding industrial processes without compromising on performance reliability.
