When it comes to industrial and commercial applications, selecting the right pushbutton is crucial for ensuring both functionality and safety. This non-illuminated pushbutton offers a robust solution designed to meet demanding requirements with its impressive specifications.

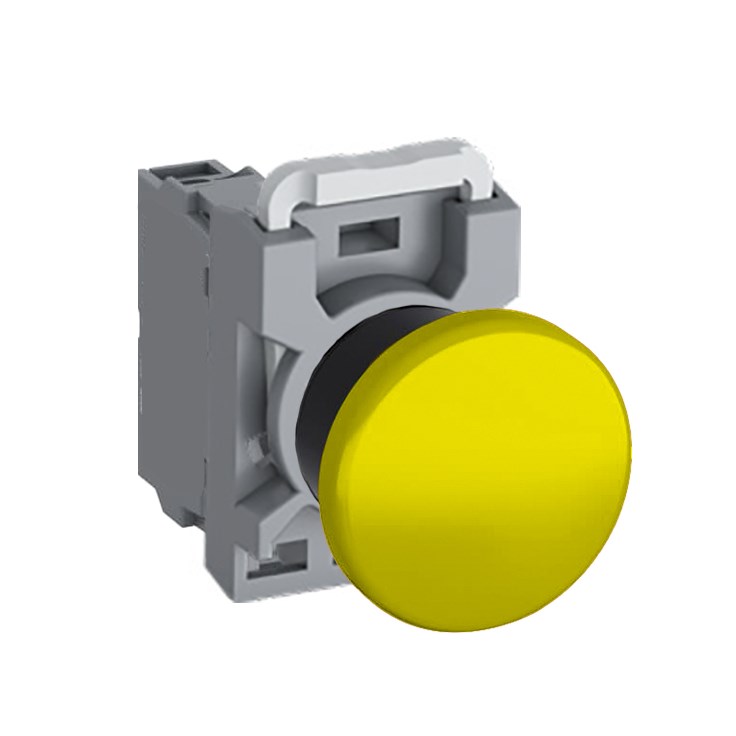

The pushbutton features a mushroom actuator type with a diameter of 40 mm, making it easy to operate in various environments. Its yellow button color ensures high visibility, an essential aspect for quick identification during operation or emergencies.
A key consideration in any industrial setting is the degree of protection offered by equipment. This pushbutton provides an IP66 rating at the front, safeguarding against dust ingress and powerful water jets from any direction. The terminal side holds an IP20 rating, suitable for preventing accidental contact with fingers or similar objects.
Engineered to withstand challenging conditions, this device operates efficiently within an ambient temperature range of -25°C to 70°C. Such versatility allows it to perform reliably across diverse climates found throughout Australia.
Safety and compliance are paramount; hence this pushbutton adheres to numerous standards including EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. It also meets North American standards UL 508 and CSA C22.2 No. 14 which further attests to its global applicability.
Electrical specifications include a rated insulation voltage of 690 V and a rated impulse withstand voltage of up to 6 kV—ensuring robustness against transient overvoltages that may occur in electrical systems. With a rated thermal current capacity of 10 A, this product is well-suited for handling moderate power loads typical in many industrial applications.
The contact configuration is set as normally open (1NO), providing simplicity while maintaining effective control capabilities when integrated into larger systems or circuits.
Constructed with practicality in mind, the bezel material is plastic—a choice that balances durability with cost-effectiveness without compromising on performance integrity under standard operating conditions.
Installation is straightforward thanks to its cutout size matching the actuator diameter at precisely 40 mm—facilitating seamless integration into existing panels or new setups alike. Additionally included are vital components such as the operator itself along with both contact block and holder ensuring you have everything necessary for immediate deployment upon receipt—streamlining your workflow processes significantly without unnecessary delays due solely lack ancillary parts being present initially alongside main unit purchase itself thereby enhancing overall user experience greatly indeed!
