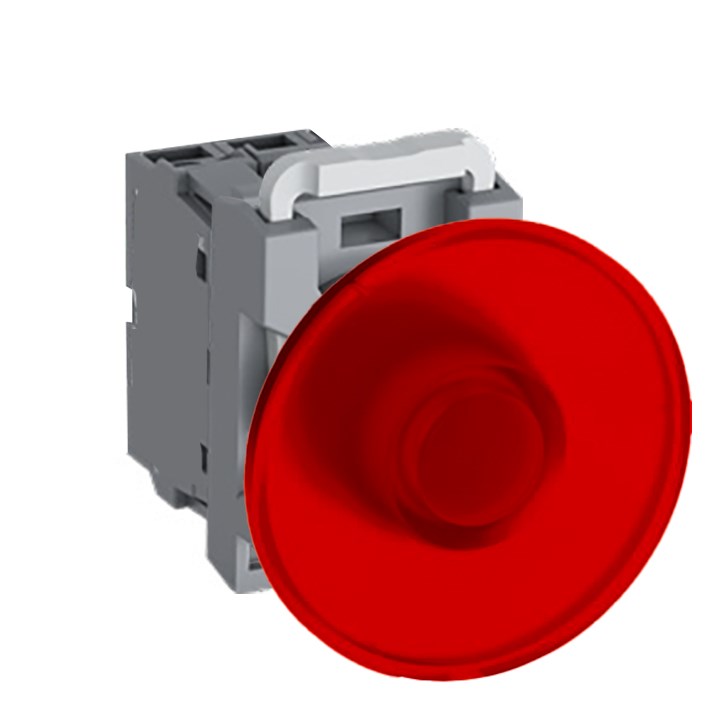

When it comes to selecting reliable and robust components for industrial and commercial applications, understanding the specifics of a product is crucial. This illuminated momentary push button offers a blend of functionality and durability, making it suitable for various demanding environments.
Operating at a rated voltage of 220 VDC, this device ensures efficient performance across its operational temperature range from -25 to 70 degrees Celsius. The illumination feature is provided by an LED lamp in red, which enhances visibility—a critical factor in safety and operational efficiency.
Designed with protection in mind, the front of this component boasts an IP66 rating, ensuring resistance against dust and powerful water jets. Meanwhile, the terminal holds an IP20 rating, offering basic protection against solid objects. These ratings make it well-suited for environments where exposure to harsh conditions is routine.
The standards compliance list is extensive: EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 ensure that the product meets essential safety requirements while EN IEC 60073 provides guidelines on color coding and marking used in electrical installations. Furthermore, adherence to UL 508 and CSA C22.2 No. 14 confirms its compatibility with North American standards.
With a rated insulation voltage of up to 690 V and an impulse withstand voltage of 6 kV, this push button can handle significant electrical stress without compromising safety or performance. The contact configuration includes one normally closed (1NC) contact type—ideal for circuits that require breaking under normal operations—and supports a rated thermal current of up to 10 A.
The construction features a durable plastic bezel material with both operator comfort and longevity in mind. Measuring at a diameter of 60 mm with the same cutout size required for installation ensures ease during setup without needing complex adjustments or modifications.
Included components such as the operator itself along with a contact block holder and LED block provide everything needed for straightforward assembly into your system architecture.
Overall, this momentary push button combines high-quality engineering with practical design elements suited for professionals seeking reliable solutions within their electrical systems conforming to international standards.
