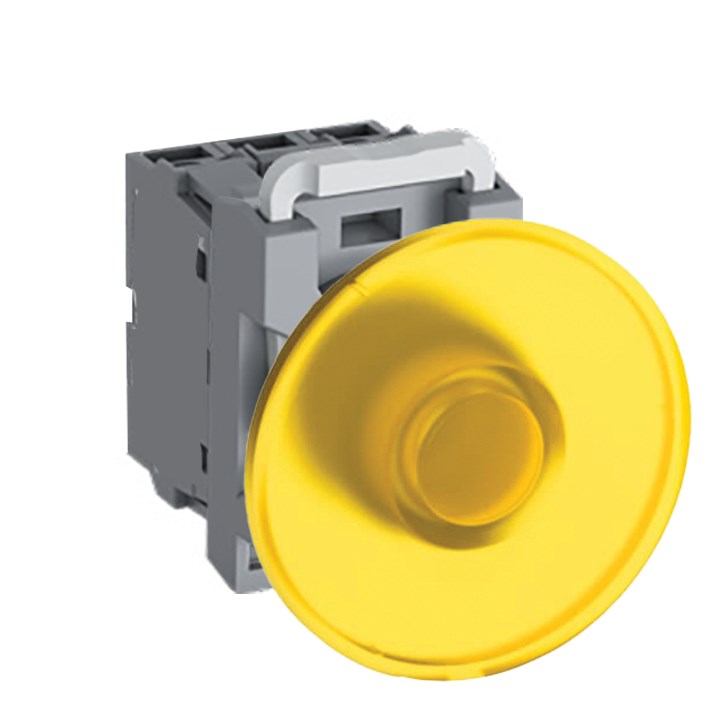

When selecting industrial components, precision and reliability are paramount. This illuminated pushbutton is designed to meet rigorous standards, ensuring dependable performance in various applications. Operating at a rated voltage of 12 VAC/DC, it offers versatility for both AC and DC systems. Its illumination feature enhances visibility with a bright yellow LED lamp, making it ideal for environments where signaling clarity is crucial.
Engineered to withstand challenging conditions, the device operates efficiently within a temperature range of -25 to 70°C. With an IP66 rating on the front and IP20 at the terminal, it provides robust protection against dust and water ingress—essential for maintaining functionality in demanding settings.
The product adheres to numerous international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5, and more. These certifications not only affirm its quality but also ensure compatibility with global safety requirements including UL 508 and CSA C22.2 No. 14 approvals.
With a contact configuration of 2NC (two normally closed contacts), this pushbutton suits applications requiring reliable circuit interruption upon activation. The rated insulation voltage stands at an impressive 690 V while its rated impulse withstand voltage reaches up to 6 kV—demonstrating its capability to handle transient overvoltages effectively.
The pushbutton's diameter is standardized at 60 mm with a matching cutout size for straightforward installation into panels or control stations. Constructed from durable plastic material, the bezel ensures longevity without compromising on weight or cost-effectiveness.
Designed as a momentary switch function type, this component returns automatically to its original position after being pressed—a critical feature in scenarios demanding immediate response actions like emergency stops or reset operations.
Included in the package are essential components: operator unit, contact block, contact block holder, and LED block—providing everything needed for seamless integration into your system setup.
Rated at a thermal current capacity of up to 10 A this device can manage substantial electrical loads without overheating or failure thus reinforcing its suitability across various industrial sectors from automation systems to building management controls
This comprehensive combination of features makes this illuminated pushbutton an excellent choice for professionals seeking reliable solutions that meet stringent technical specifications while delivering consistent performance across diverse operational environments
