When considering the technical specifications of industrial and commercial products, the details matter significantly. For those in search of a reliable illuminated component for their electrical systems, this product offers a robust set of features tailored to meet demanding environments.

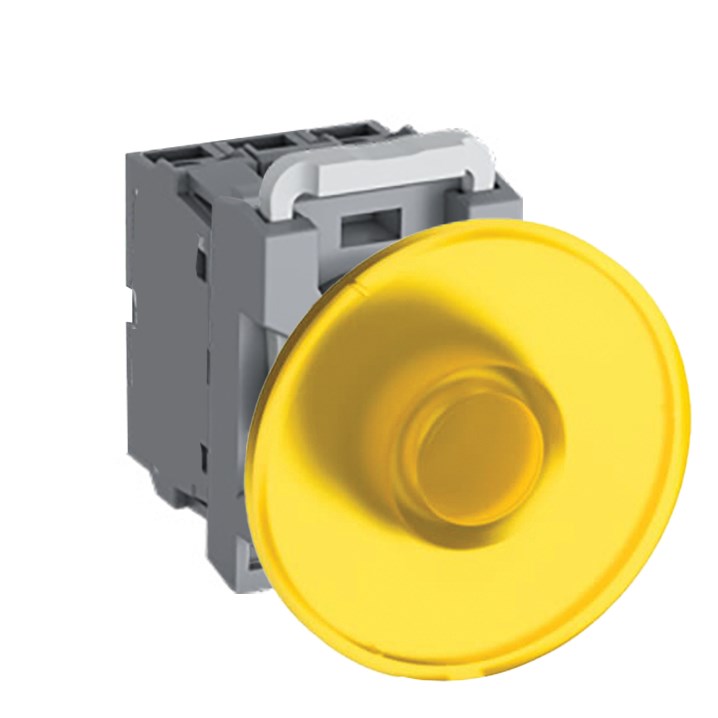

At its core, this device operates with a rated voltage of 220 VDC, making it suitable for various applications requiring direct current. Its illumination is powered by an LED lamp, known for energy efficiency and longevity. The yellow lamp color ensures high visibility in numerous settings.
The operational temperature range spans from -25 to 70 degrees Celsius, allowing it to function effectively in both cold and warm environments without compromising performance. With an IP66 rating at the front and IP20 at the terminal, it boasts excellent protection against dust and powerful water jets while providing adequate safety at connection points.
For compliance and peace of mind, this product adheres to multiple international standards such as EN IEC 60947-1, EN IEC 60947-5-1, EN IEC 60947-5-5 among others. These certifications ensure that the device meets rigorous quality and safety benchmarks necessary for industrial use across different regions including adherence to UL 508 and CSA C22.2 No. 14 standards.
The device also features a rated insulation voltage of 690 V which provides additional security against electrical faults. The contact configuration consists of two normally open (2NO) contacts with a momentary function—ideal for applications requiring temporary activation or signaling.
Withstanding surges up to 6 kV thanks to its rated impulse withstand voltage capability further enhances its reliability under sudden voltage spikes common in many industrial setups. It supports a rated thermal current up to 10 A ensuring compatibility with other components within your system without overheating risks.
Measuring at a diameter of 60 mm with an identical cutout size simplifies installation processes into standard panels or enclosures while maintaining structural integrity through its plastic bezel material—a practical choice balancing durability with cost-effectiveness.
This comprehensive package includes everything needed for straightforward assembly: operator unit along with contact block holder plus LED block ensuring you have all essential parts ready upon delivery minimizing downtime during integration phases across projects large or small alike.
